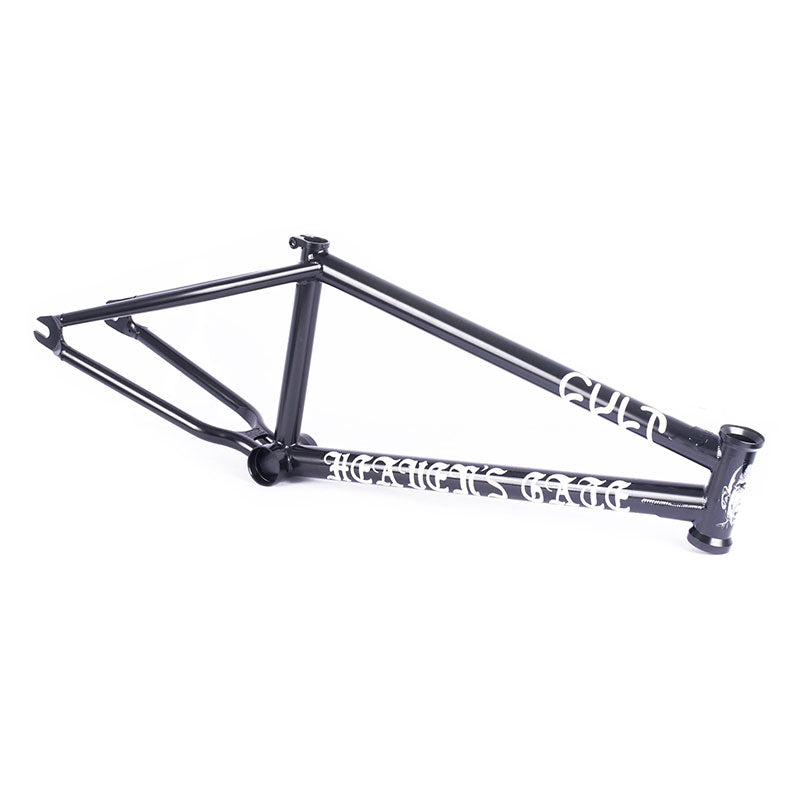

Cult Begin Heavens Gate IC Frame

Brandon Begin signature

material : Chromoly
top tube length : choose available TT size (in inch) in the size menu above
head tube angle : 75,3 degrees
head tube length : 117.48mm
seat tube angle : 71 degrees
chain stay length : 12,8-13,1 inch
bottom bracket height : 11,8 inch
stand over height : 9 inch

head tube : compatible with integrated headsets (45/45 degrees)
bottom bracket : mid
seat tube : fits 1 inch seatposts | integrated seat clamp
dropouts : 14mm slots | 5mm thick | heat-treated
down tube gusset : yes
top tube gusset : yes

tire clearance : fits large tires
brake mounts : no (brakeless)
gyro tab holes : no (brakeless)

additional information :
investment cast seatpost clamp and seatstay bridge
investment cast heat-treated dropouts
externally machined BB shell
investment cast chainstay yoke with room for 2.40" tires
