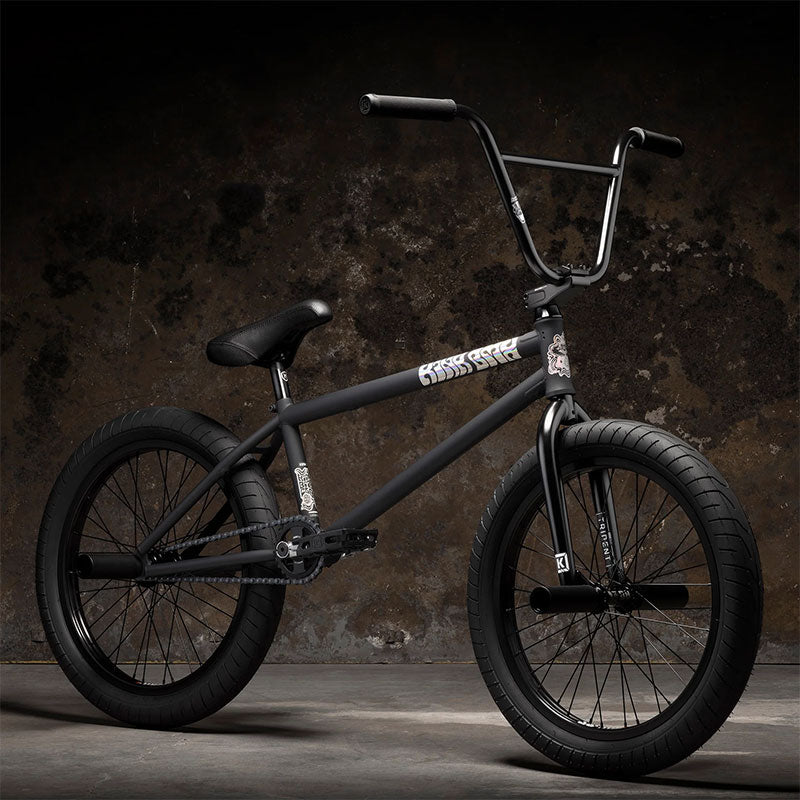

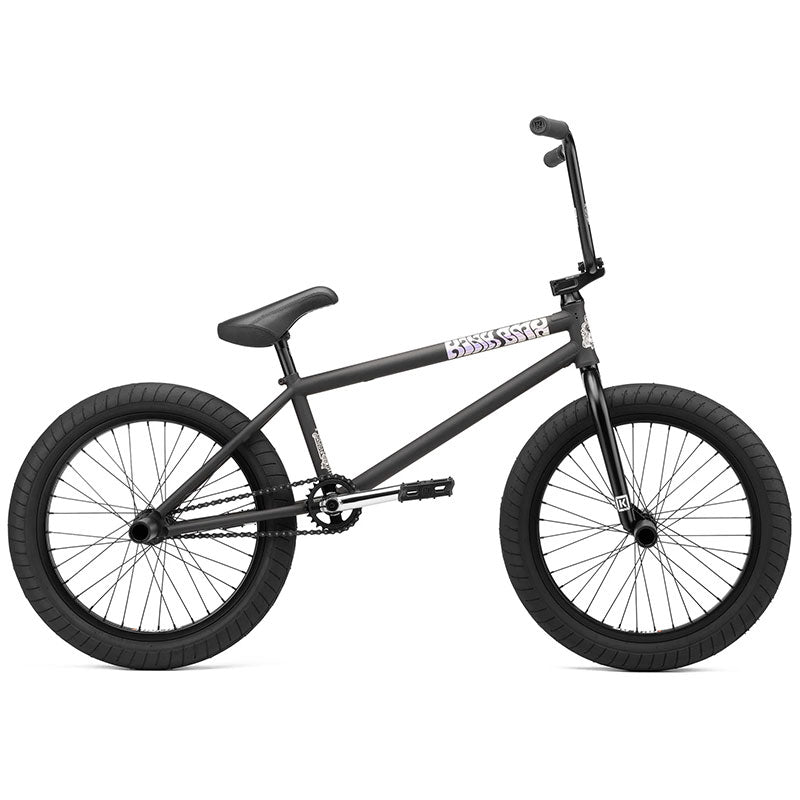

Kink Cloud Complete

frame: Kink Cloud Stock | 100% 4130 Chromoly | Removable Mounts
top tube length: 21.0 inch
head tube angle: 75.5 degrees
seat tube angle: 71 degrees
chain stay length: 13.25 inch
bottom bracket height: 11.65 inch
stand over height: 8.75 inch

forks: Kink Trident | 100% 4130 Chromoly | 1pc Steerer Tube | Tapered Legs
bars: Rex Bars | 100% 4130 Chromoly | 13-Butted TruTherm | 9.5 inch rise
stem: Kink bold HRD | 50mm reach
headset: Mission sealed | integrated (41,8 x 45)
grips: Kink Form | flangeless
bar ends: Kink Thrust

front hub: Mission Bond | Sealed | 3/8 inch (10mm) axle | 36H
rear hub: Mission Pace | Sealed | Freecoaster | 14mm | 36H | RHD
front rim: Mission Mylar | 36H
rear rim: Mission Mylar | 36H
front tire: Kink Sever | 20 inch diameter | 2,4 inch wide
rear tire: Kink Sever | 20 inch diameter | 2,4 inch wide

cranks: Kink Ridge | 3pc | Tubular | chromoly | 8 spline | 170mm length
bb: mid | sealed | 19mm
sprocket: Kink Imprint | 25T | CNC | 7075-T6
chain: Mission 510H
pedals: Kink Hemlock
gearing: 25 x 9

seat: Kink Ericsson | Stealth
seat post: Mission | Aluminum | Stealth
seat post clamp: Integrated

brake: Mission Cease V2
brake cable: Mission L4 linear
brake lever: Mission Token

pegs: 4 Mission Nylon Pegs included
