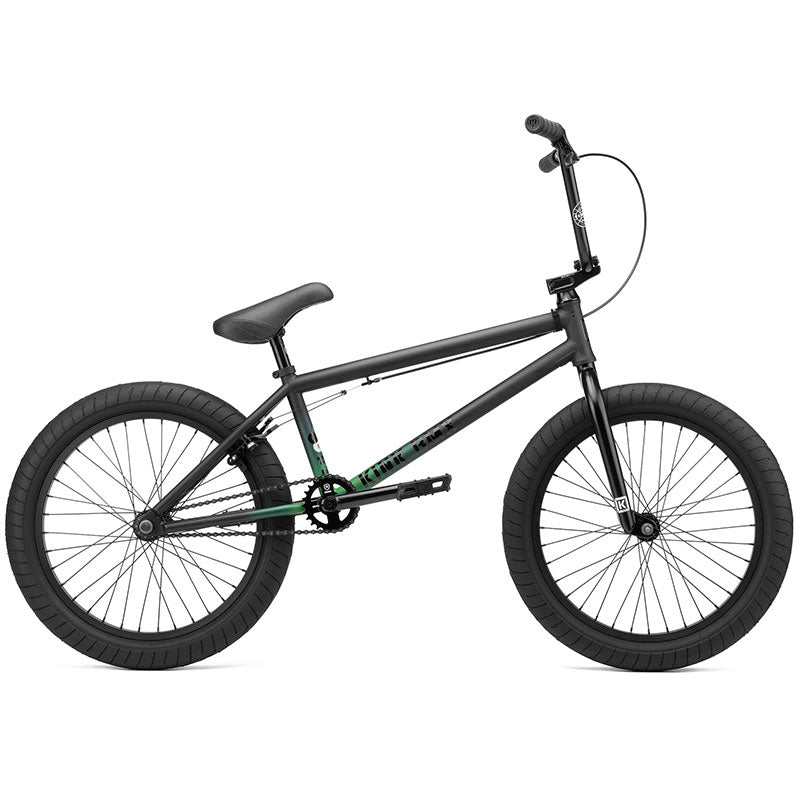

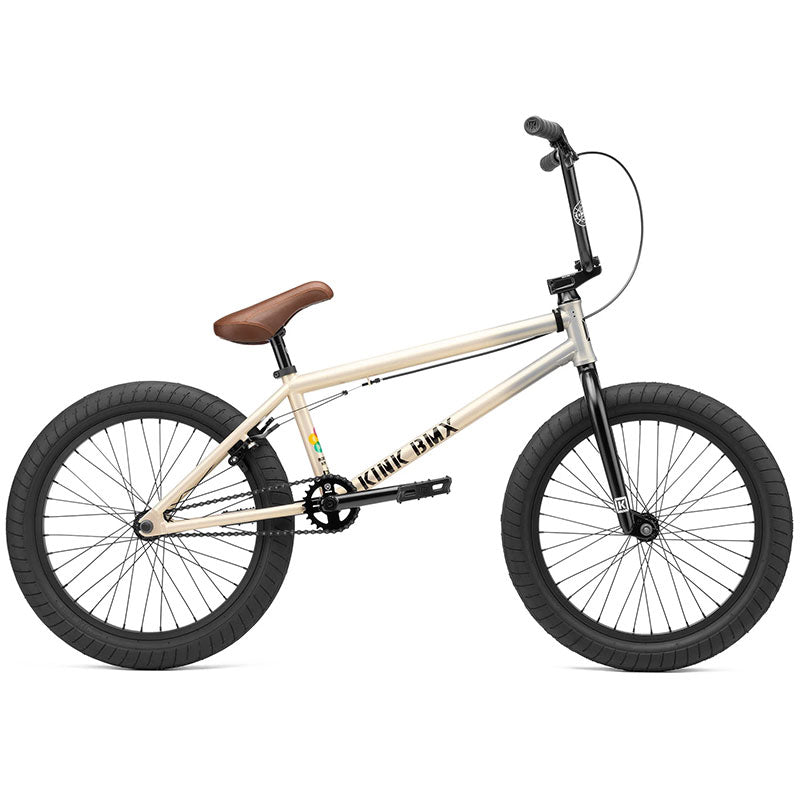

Kink Gap XL Complete

frame: 4130 Chromoly HT, TT and DT
top tube length: 21 inch
head tube angle: 75 degrees
seat tube angle: 71 degrees
chain stay length: 13,25 inch
bottom bracket height: 11,6 inch
stand over height: 9 inch

forks: Kink Gap | 4130 chromoly steerer | tapered legs
bars: Kink T925 | 100% 4130 Chromoly | 9,25 inch rise
stem: Kink bold HRD | 50mm reach
headset: Mission sealed | integrated (41,8 x 45)
grips: Kink Ace | flangeless
bar ends: Kink Thrust

front hub: Mission Covert | unsealed | 3/8 inch (10mm) axle | 36H
rear hub: Mission Engage | sealed | cassette | 14mm | 36H | RHD
front rim: Mission X7 | 36H
rear rim: Mission X7 | 36H
front tire: Kink Sever | 20 inch diameter | 2,4 inch wide
rear tire: Kink Sever | 20 inch diameter | 2,4 inch wide

cranks: Mission Ridge | 3pc | tubular | chromoly | 8 spline | 170mm length
bb: mid | sealed | 19mm
sprocket: Mission Breach 25T
chain: Mission 410
pedals: Kink Hemlock
gearing: 25 x 9

seat: Kink Plymouth Stealth
seat post: Mission Stealth
seat post clamp: Mission Slim Clamp

brake: Mission Cease V2
brake cable: Mission L3 linear
brake lever: Mission Token

pegs: not included
