PROFILE
Profile Spline Drive Sprocket
Profile Spline Drive Sprocket
Normale prijs
€89,95 EUR
Normale prijs
Aanbiedingsprijs
€89,95 EUR
Eenheidsprijs
per
Inclusief btw.
Verzendkosten worden berekend bij de checkout.
Voorraad laag
Kan beschikbaarheid voor afhalen niet laden
SKU
SKU:23100567
| Weight per variant | |
|---|---|

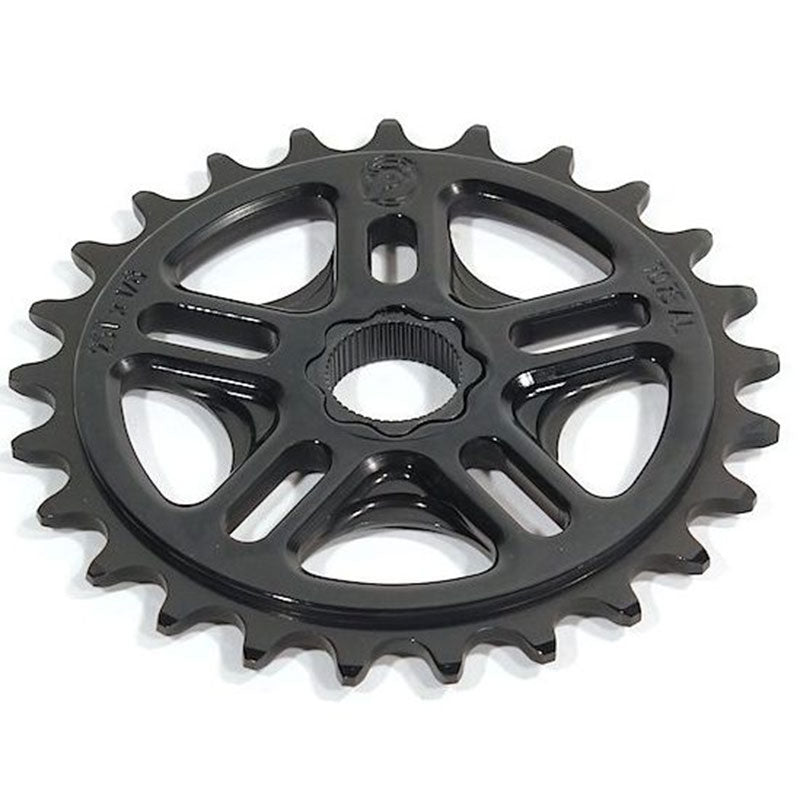

| BLACK / 25 TEETH / SPLINE: | 0.074 kg |

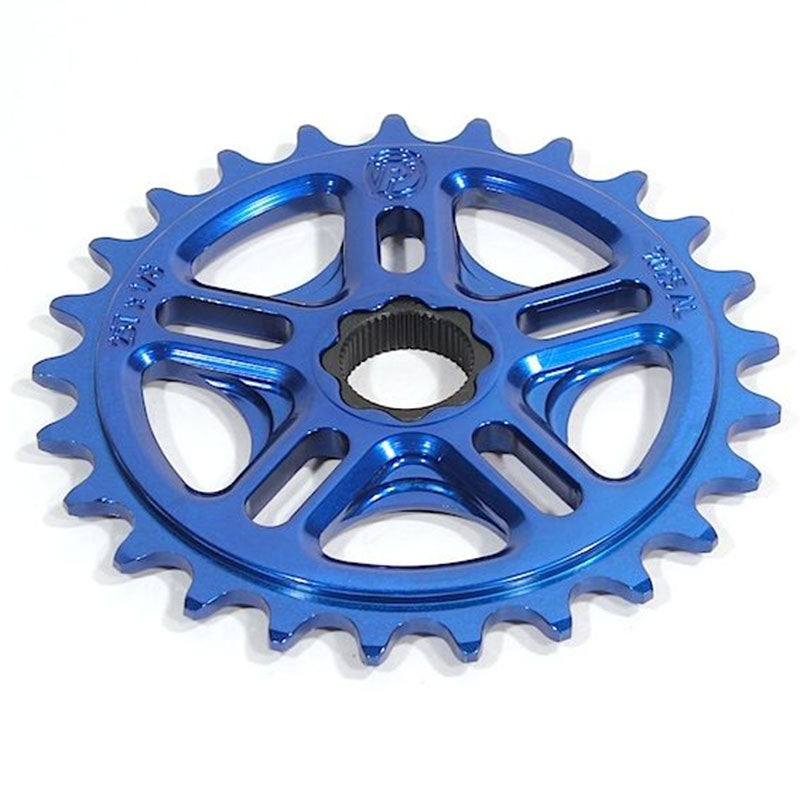

| BLUE / 25 TEETH / SPLINE: | 0.074 kg |
| MATT BLACK / 25 TEETH / SPLINE: | 0.074 kg |
| BLACK / 28 TEETH / SPLINE: | 0.087 kg |
| CAMO / 25 TEETH / SPLINE: | 0.074 kg |
| BLACK / 30 TEETH / SPLINE: | 0.093 kg |
material: CNC machined from 7075 Aluminum
size: choose available teeth in the menu option above
teeth: 1/8 inch
thickness: 6mm
bore: splined for 48 spline 19mm cranks
additional information: Requires no sprocket bolt. Instead, it has a hardened CrMo steel insert in that matches up to the 48 splines on the crank axle for pure, direct power transfer. NOTE: Spline drive sprockets are not compatible with 2-piece cranks for Right Side Drive (not enough room for splines). Spline drive sprockets are compatible on Left Side Drive 2-piece cranks though.
size: choose available teeth in the menu option above
teeth: 1/8 inch
thickness: 6mm
bore: splined for 48 spline 19mm cranks
additional information: Requires no sprocket bolt. Instead, it has a hardened CrMo steel insert in that matches up to the 48 splines on the crank axle for pure, direct power transfer. NOTE: Spline drive sprockets are not compatible with 2-piece cranks for Right Side Drive (not enough room for splines). Spline drive sprockets are compatible on Left Side Drive 2-piece cranks though.
