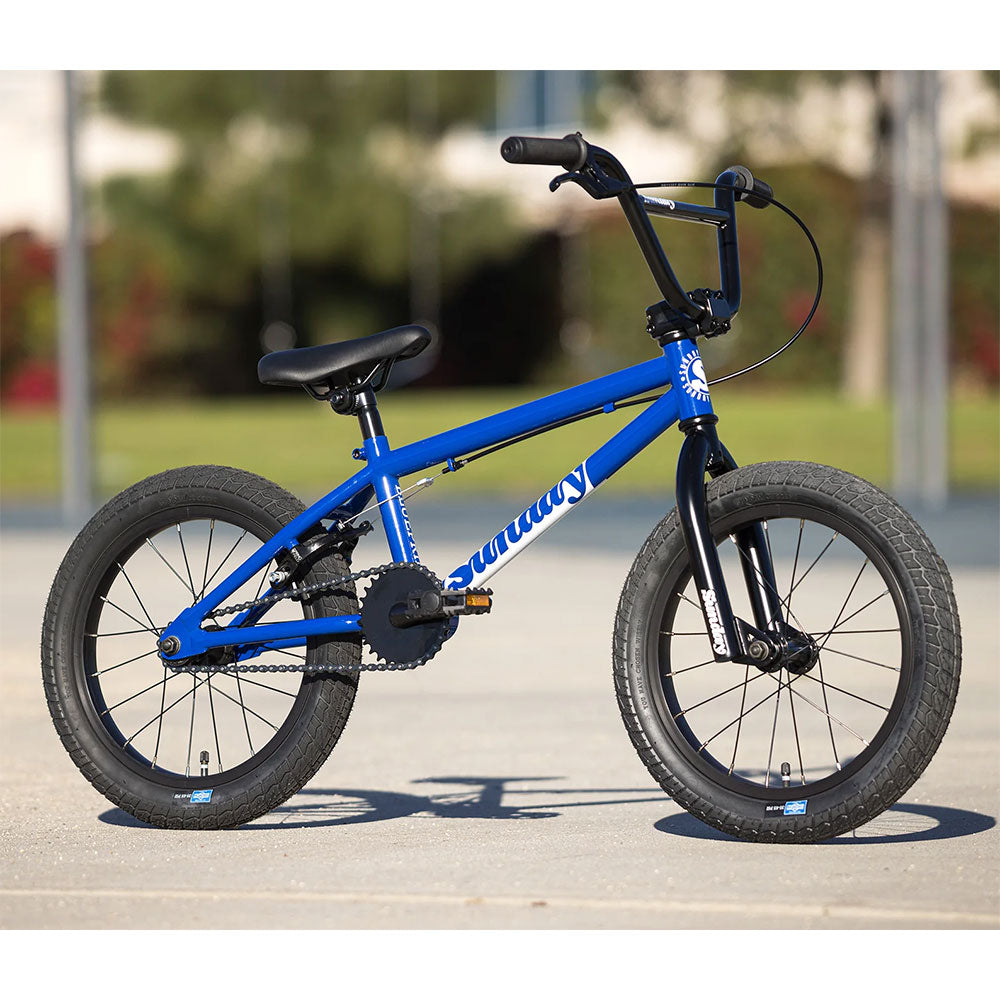

Sunday Blueprint 16 Inch Complete

frame: Sunday Blueprint | hi-tensile steel
top tube length: 15,5 inch
head tube angle: 73,5 degrees
seat tube angle: 71 degrees
chain stay length: 11,25 inch
bottom bracket height: 9,25 inch
stand over height: 6,9 inch

forks: Sunday Blueprint | 16 inch | hi-tensile steel | 2pc steerer

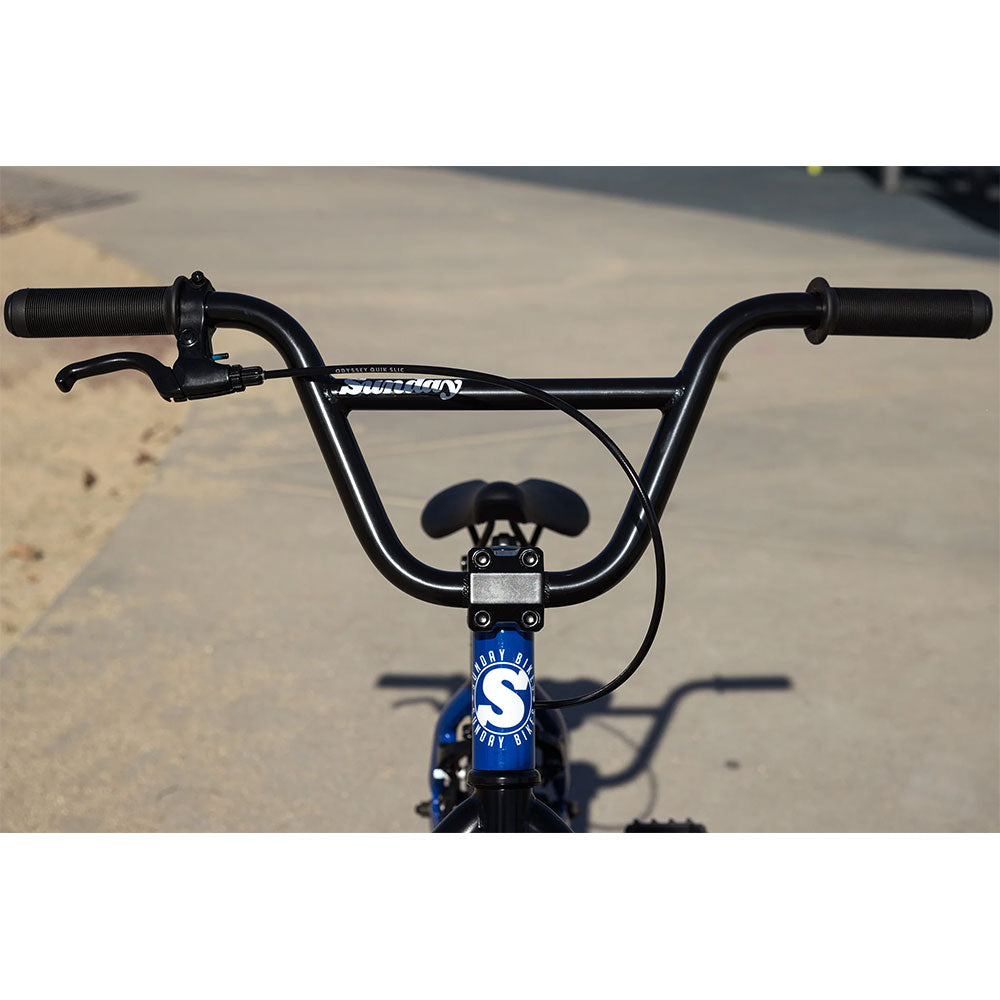

bars: Sunday | hi-tensile steel | 6,75 inch rise | 23 inch wide | 12 degrees backsweep | 1 degree upsweep
stem: frontload | aluminum | 40 mm reach
headset: traditional | 1 1/8 inch
grips: Velo Junior
bar ends: Sunday

front hub: 20H | low-flange | unsealed | 3/8 inch axle
rear hub: 20H | unsealed | 3/8 inch axle | Odyssey 13T freewheel
front rim: P-7X aluminum | 16 inch | 20H
rear rim: P-7X aluminum | 16 inch | 20H
spokes: 14G steel | black
front tire: Sunday OEM | 16 inch x 2,20 inch wide
rear tire: Sunday OEM | 16 inch x 2,20 inch wide

cranks: 115 mm length | 1-piece
bb: American BB | unsealed | 19 mm
sprocket: Sunday S-Logo | steel | 28T
chain: KMC S1
pedals: FPD Junior platform | plastic | 1/2 inch axle
gearing: 28 x 13

seat: Sunday Badge Junior | seat and post combo
seat post: integrated
seat post clamp: integrated

brake: Odyssey Springfield U-brake
brake cable: Odyssey Quik Slic
brake lever: junior aluminum | short reach

pegs: not included
weight: approx. 9,86 kg / 21,73 lbs (with brakes)

additional information:
• Junior-sized 16 inch BMX designed for younger riders

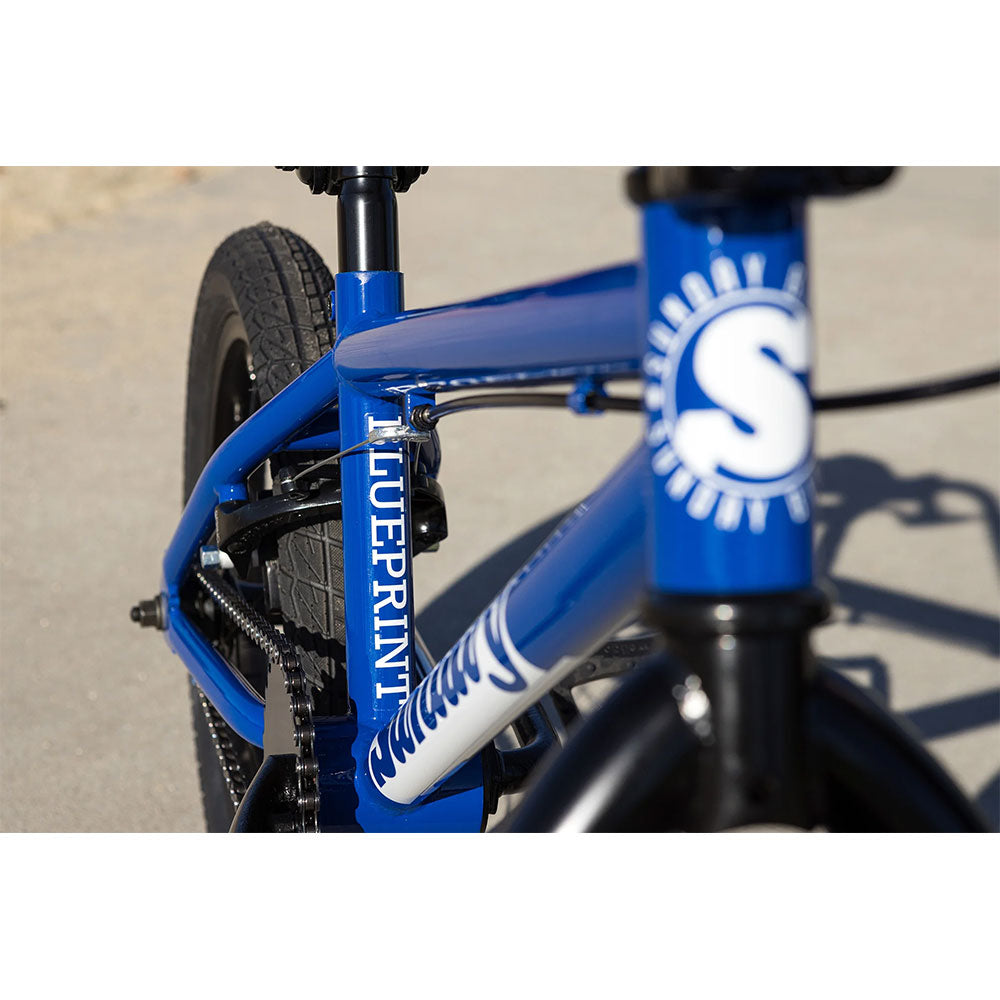

• Sunday Blueprint frame and fork
• Odyssey Springfield U-brake with Quik Slic cable
• Odyssey 13T freewheel
• KMC S1 chain
• Wide 16 x 2,20 inch tires for extra grip and stability
• Junior-sized handlebars, grips, pedals and brake lever
