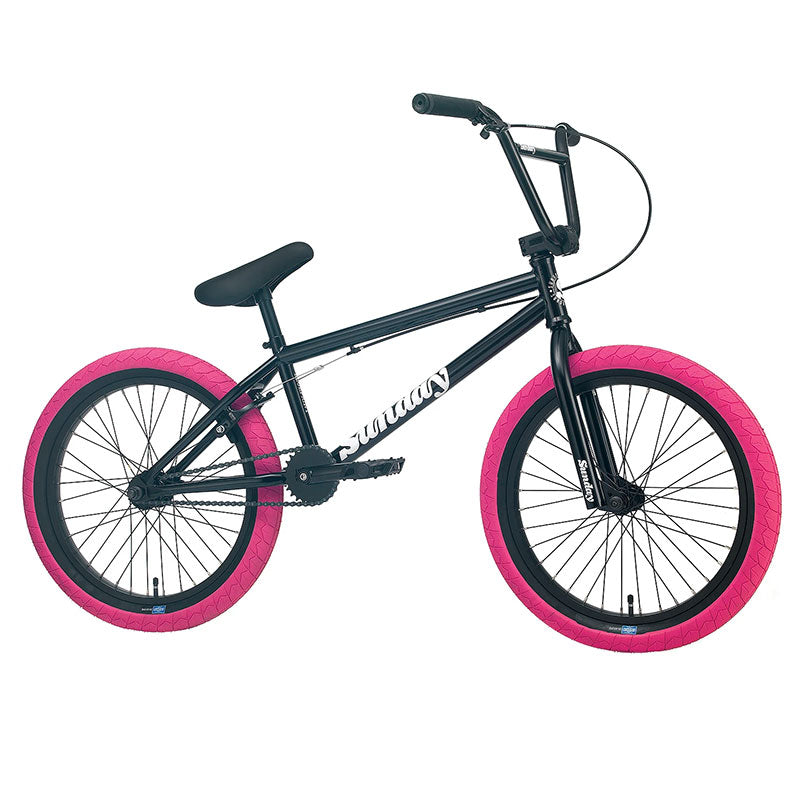

Sunday Blueprint Complete

frame: hi-tensile steel
top tube length: choose available TT length in inch in the menu above
head tube angle: 75 degrees
seat tube angle: 71 degrees
chain stay length: 13,2 - 13,5 inch
bottom bracket height: 11,5 inch
stand over height: 8,75 inch

forks: Sunday Blueprint | hi-tensile steel | 2pc steerer | welded pre-load
bars: 9 inch rise | 28,5 inch wide | 12 degrees backsweep | 4 degrees upsweep | 2-piece
stem: Sunday Freeze | frontload | 48 mm reach
headset: integrated | 1 1/8 inch
grips: Sunday Cornerstone
bar ends: Sunday


front hub: Low-flange | looseball | 36H
rear hub: semi-sealed | 36H | 9 teeth driver
front rim: P-7X 20 | 36H
rear rim: P-7X 20 | 36H
front tire: Sunday Current V2 | 20 inch diameter | 2,4 inch wide
rear tire: Sunday Current V2 | 20 inch diameter | 2,4 inch wide

cranks: chromoly | 160 mm length | tubular | 3-piece
bb: looseball | american | 19 mm
sprocket: Sunday S-Logo | 25T | steel
chain: KMC S1
pedals: wellgo platform | plastic
gearing: 25 x 9

seat: Sunday Badge | combo
seat post: combo
seat post clamp: integrated

brake: Odyssey Springfield U-Brake
brake cable: Odyssey Quik Slic
brake lever: Odyssey Springfield

pegs: not included
