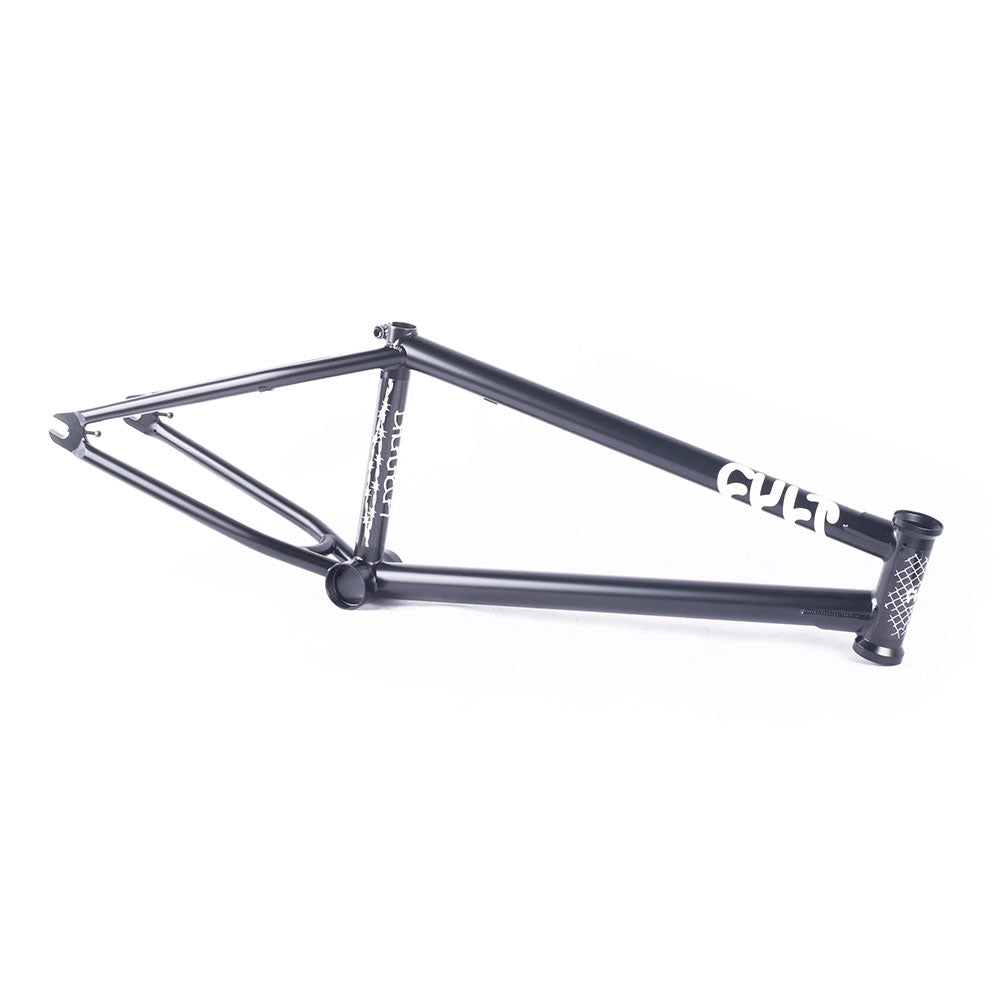

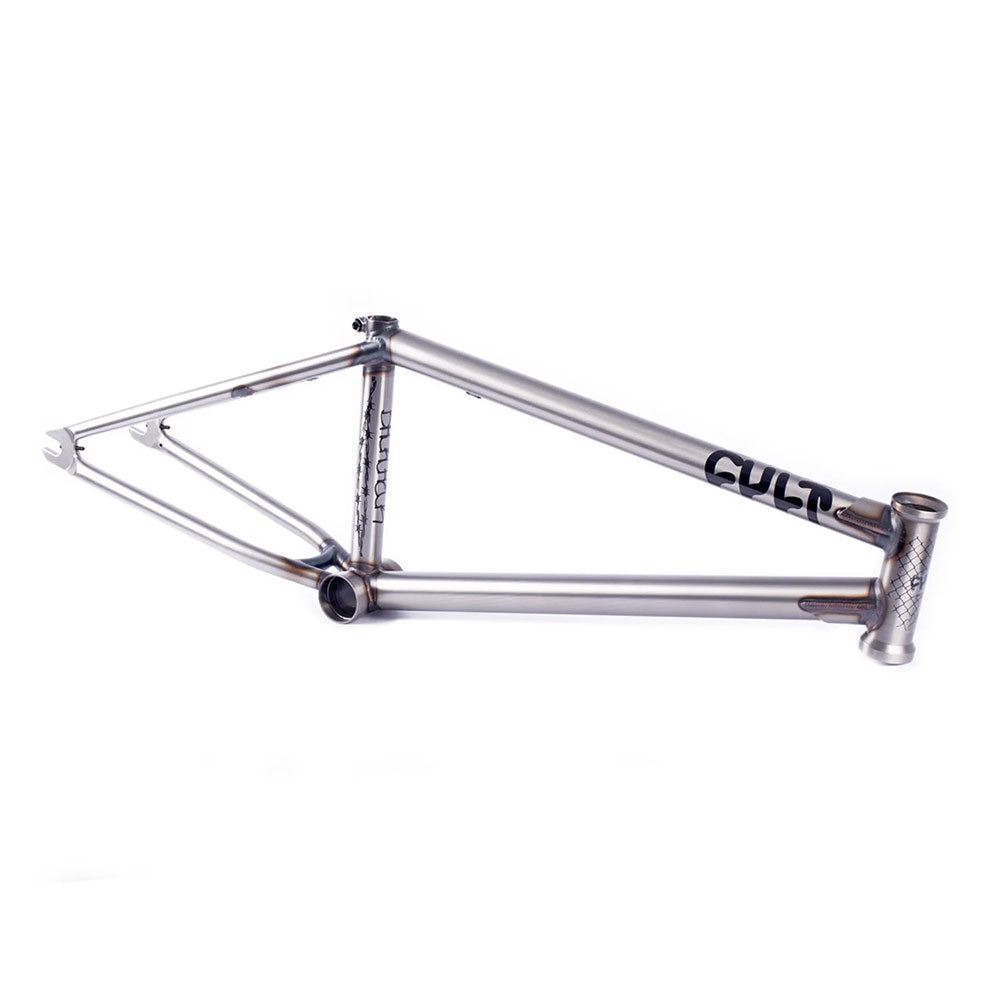

Cult Chase Dehart Frame

Chase Dehart Signature Frame – Backcheck Edition

material: 100% Cult Classic tubing
top tube length: select available TT size (in inch) in the size menu
head tube angle: 75.5 degrees
head tube length: 5 inch
seat tube angle: 70 degrees
chain stay length: 13.25 inch (slammed) - 13.55 inch
bottom bracket height: 11.7 inch
stand over height: 8.75 inch

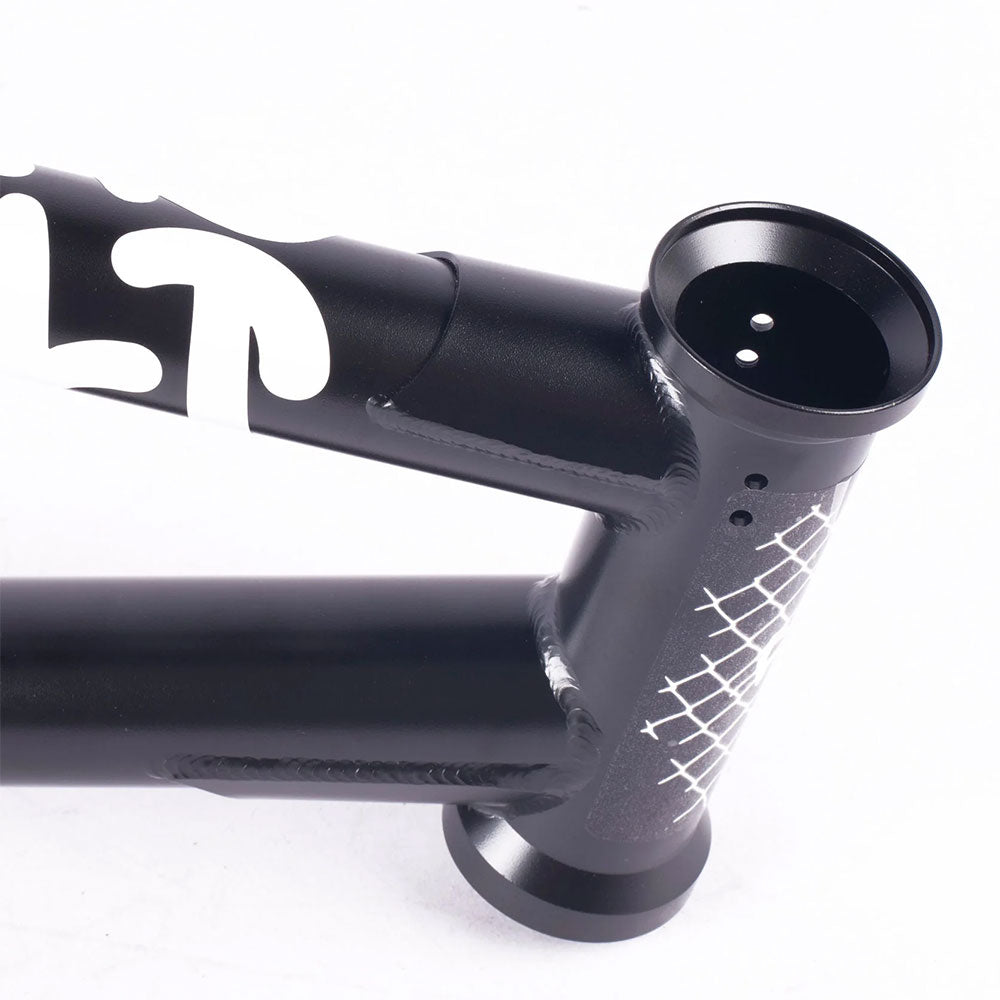

head tube: compatible with integrated headsets (45/45 degrees)
bottom bracket: mid | externally machined BB shell
seat tube: fits 1 inch seatposts | integrated seat clamp
dropouts: 14mm slots | investment cast | heat-treated | integrated chain tensioners
down tube gusset: yes
top tube gusset: yes

tire clearance: fits up to 2.40 inch tires
brake mounts: removable on seatstays (not included)
gyro tab holes: yes (tabs not included)

additional information:
Top and down tube gussets for additional strength.
Tapered seatstays and chainstays with clearance for 2.40 inch tires.
Investment cast heat-treated dropouts with integrated chain tensioners.
