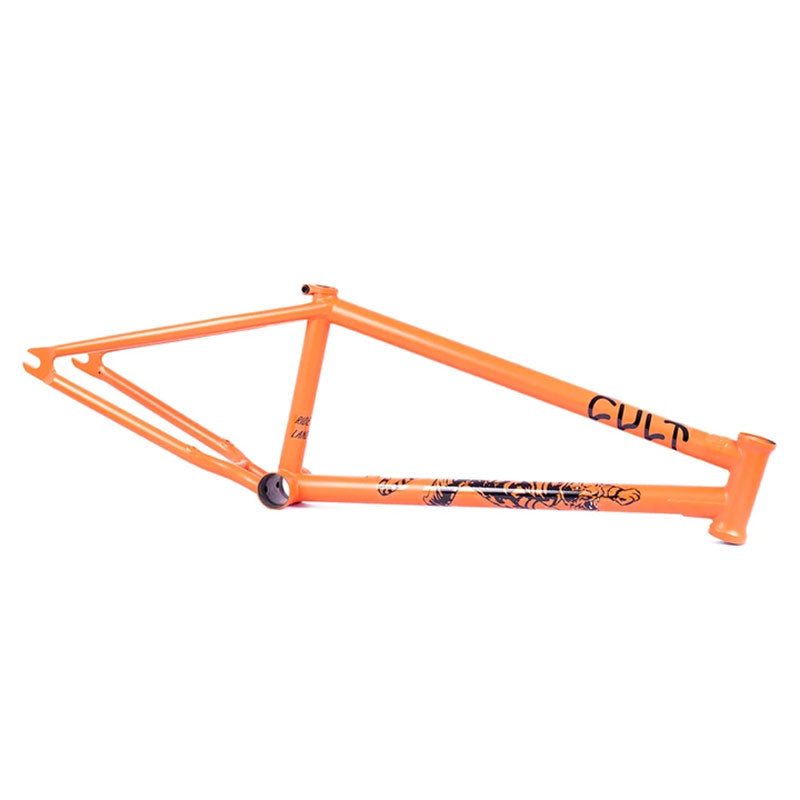

Cult Tom Russel Frame

Tom Russel signature colorway

material : Chromoly
top tube length : choose available TT length (in inch) in the size menu above
head tube angle : 74,5 degrees
seat tube angle : 71 degrees
chain stay length : 13.8-14.1 inch
bottom bracket height : 11,5 inch
stand over height : 9 inch

head tube : compatible with integrated headsets (45/45 degrees)
bottom bracket : mid
seat tube : fits 1 inch seatposts | integrated seat clamp
dropouts : 14mm slots | investment cast | heat-treated
down tube gusset : yes
top tube gusset : yes

tire clearance : fits large tires
brake mounts : yes
gyro tab holes : yes

additional information :
investment cast seatpost clamp and seatstay bridge
externally machined BB shell
tapered chainstays with room for 2.40” tires
