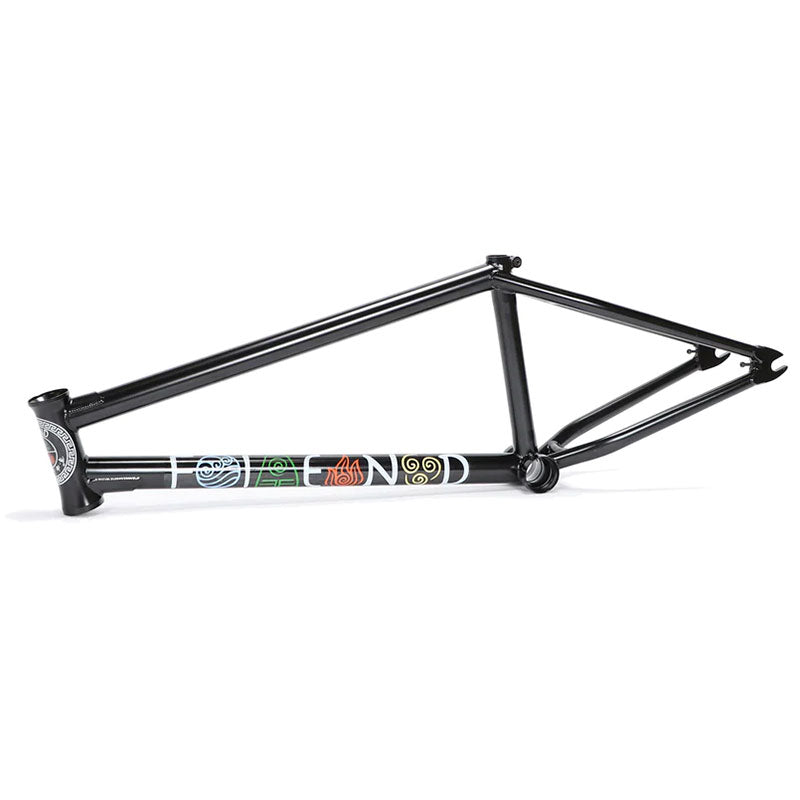

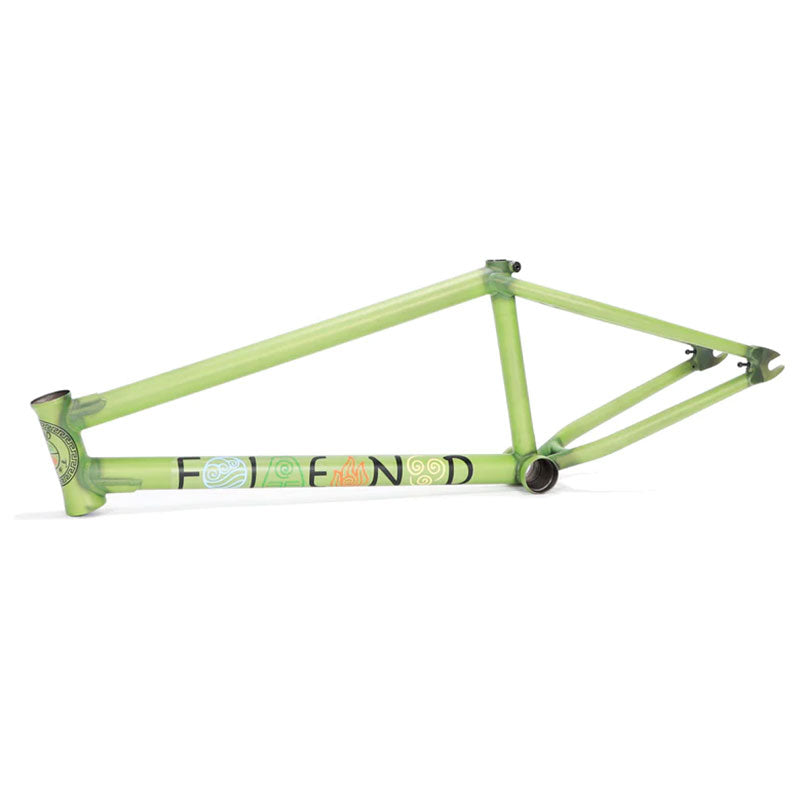

Fiend Raekes Frame

Fiend Raekes Frame

Regular price €399,95 EUR
Regular price Sale price €399,95 EUR
Sale Sold out
Tax included. Shipping calculated at checkout.

Low stock




Weight per variant
BLACK / 20.6''TT / BRAKEMOUNT: 2.36 kg
GREEN / 20.6''TT / BRAKEMOUNT: 2.36 kg
BLACK / 20.8''TT / BRAKEMOUNT: 2.36 kg
GREEN / 20.8''TT / BRAKEMOUNT: 2.36 kg
BLACK / 21''TT / BRAKEMOUNT: 2.36 kg
material: full 4130 Chromoly
top tube length: choose available TT length in the size menu above
head tube angle: 75,5 degrees
head tube length: *
seat tube angle: 71 degrees
chainstay length: 12,9 inch
bottom bracket height: 11,6 inch
standover height: 9,5 inch

headtube: compatible with integrated headsets (45/45) | heat treated
bottom bracket: mid | heat treated
seattube: fits 1 inch seat posts | integrated seat clamp | externally machined
dropouts: 14mm slots | 6mm thick | heat treated | integrated chain tensioners
downtube gusset: yes
toptube gusset: yes (internal)

tire clearance: fits large tires
brake mounts: yes (brake hardware not included)
gyro tab holes: no

additional information :
dropouts with integrated chain tesioners

note :
due to the nature of semi-transparent paint finishes the character of the raw tubing will be visible and may contain vein-like abnormalities making each frame unique
