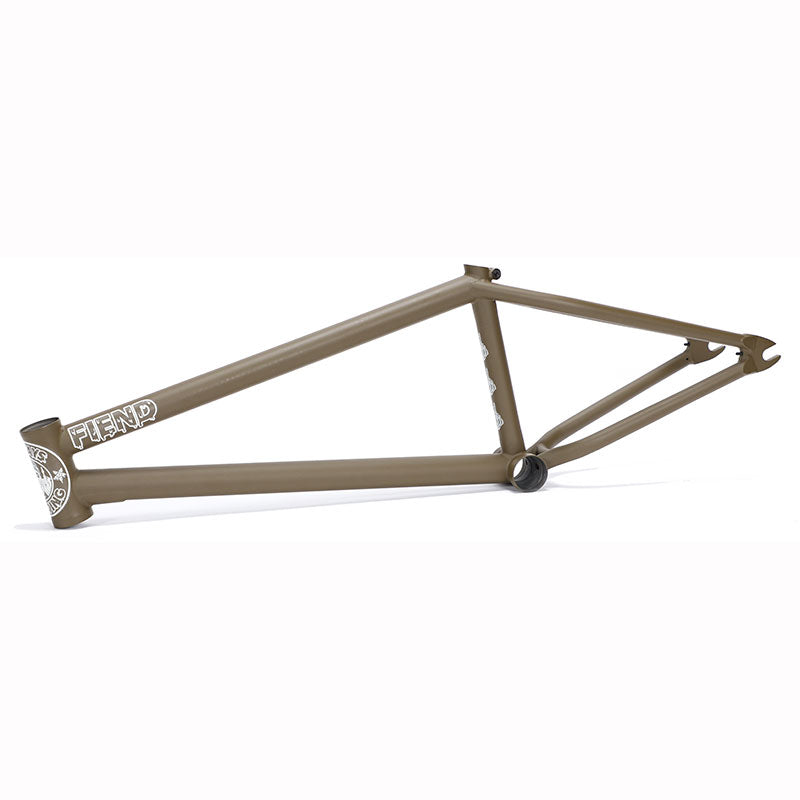

Fiend Reynolds V3 Frame

material: full 4130 Chromoly
top tube length: choose available TT length in the size menu above
head tube angle: 75,5 degrees
head tube length: *
seat tube angle: 71 degrees
chainstay length: 13 inch
bottom bracket height: 11,625 inch
standover height: 9 inch

headtube: compatible with integrated headsets (45/45) | heat treated
bottom bracket: mid | heat treated
seattube: fits 1 inch seat posts | integrated seat clamp | externally machined
dropouts: 14mm slots | 6mm thick | heat treated | integrated chain tensioners
downtube gusset: yes
toptube gusset: yes (internal)

tire clearance: fits large tires
brake mounts: no (brakeless frame)
gyro tab holes: no

additional information :
dropouts with integrated chain tesioners
externally butted seat tube
