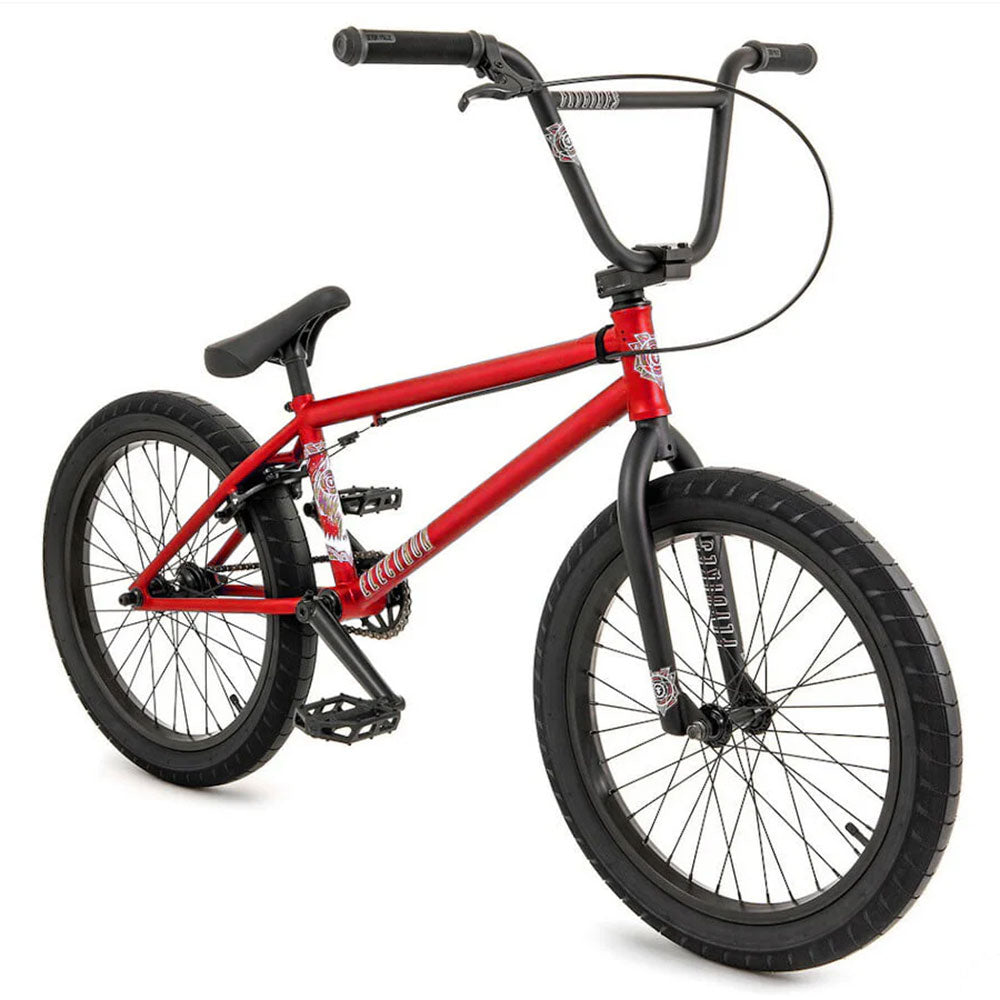

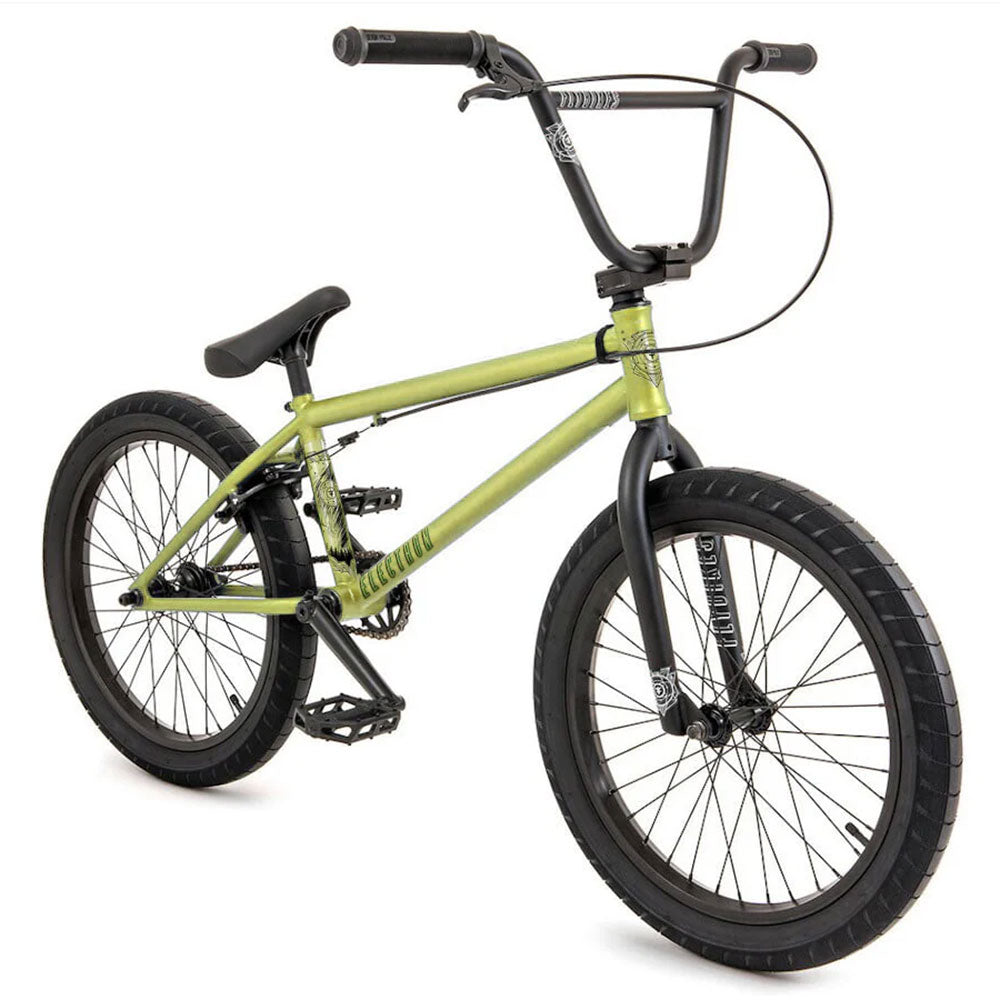

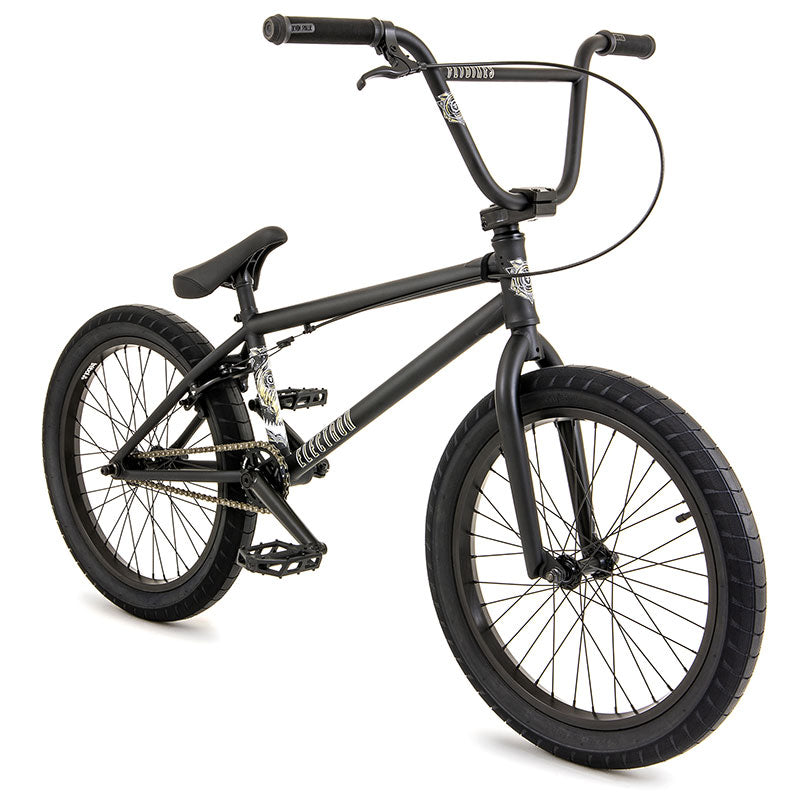

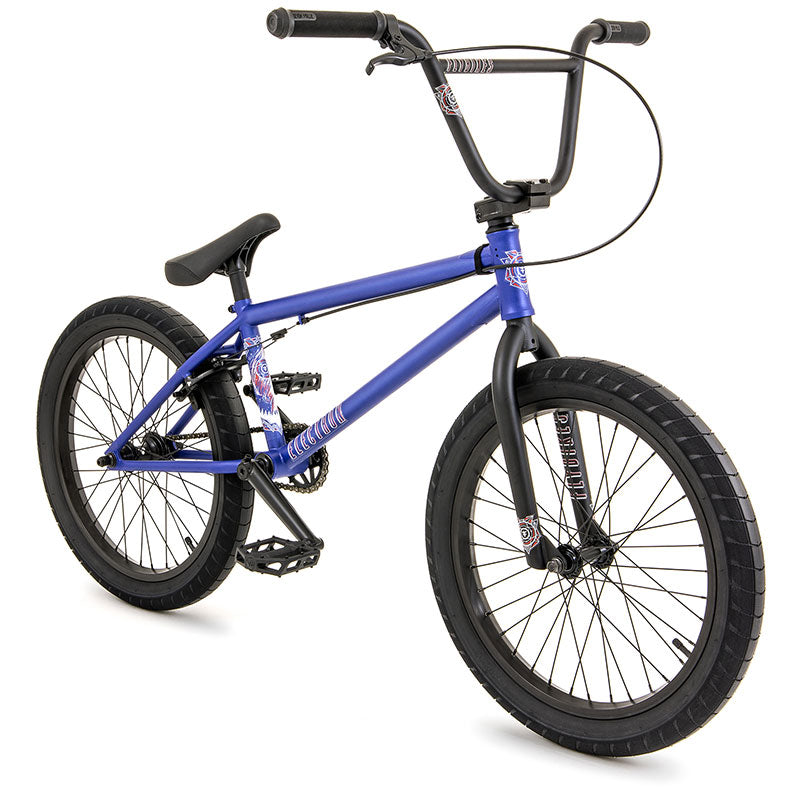

Flybikes Electron Complete

drive side:choose available drive side option in the menu above: RHD (right-hand drive) or LHD (left-hand drive)

frame: 1020 Hi-Ten Steel | 4130 CrMo Down Tube
top tube length: choose available top tube length (TT) in inch in the menu above
head tube angle: 75 degrees
seat tube angle: 71 degrees
chainstay length: 13,2 inch
bottom bracket height: 11,5 inch
standover height: 9 inch
forks: Chromoly steer tube | 1020 Hi-Ten Steel legs | 27mm offset

bars: 2 piece style | 1020 Hi-Ten | 8,75 inch rise | 10 degrees back sweep | 2 degrees up sweep | 29 inch wide
stem: Trebol | top load | Forged | 6061-T6 Aluminum | 50mm reach
headset: Trebol integrated | sealed | 1 1/8 inch threadless
grips: Flybikes Devon | 160mm long
bar ends: Flybikes
front hub: 3/8 inch axle | loose ball | male | alloy shell

rear hub: Trebol cassette| 14mm axle | sealed bearings | 9T
front rim: Trebol | double side walled | 6061-T6 Aluminum | 36H
rear rim: Trebol | double side walled | 6061-T6 Aluminum | 36H
front tire: Trebol 20 x 2,35 inch | 60 TPI | 65 PSI
rear tire: Trebol 20 x 2,35 inch | 60 TPI | 65 PSI
cranks: 3pc | 170mm | 4130 CrMo

bb: Mid | sealed
sprocket: Trebol | hi-ten steel | 25 teeth
chain: 510 type | 70 links
pedals: Flybikes Ruben graphite | Nylon - Fiberglass Compound
gearing: 25/9 teeth
seat: Flybikes Electron | 100% Synthetic Leather | 25 mm Thick | combo

seat post: combo
seat post clamp: integrated
brake: Trebol Springhanger | Forged | 6061 T-6 Aluminum

brake cable: Flybikes
brake lever: Alloy | right side | Die Casting Alloy
pegs: no
