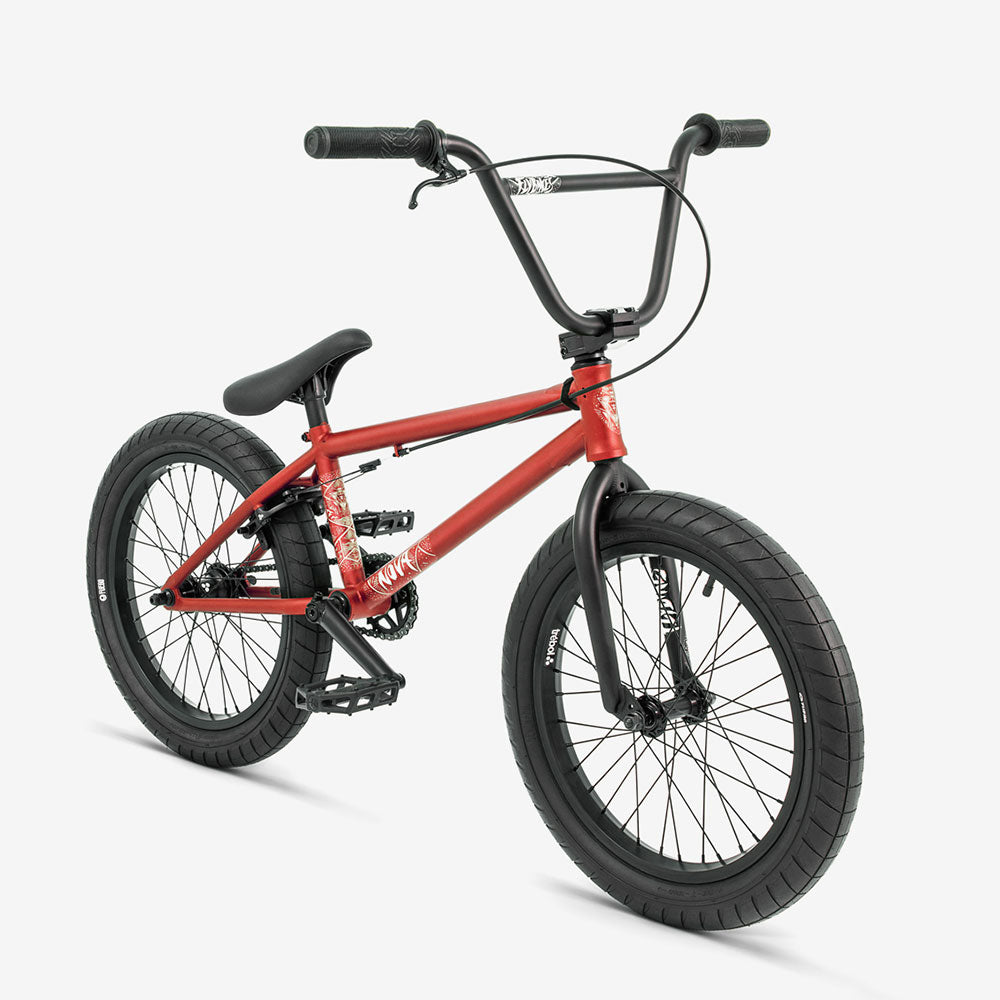

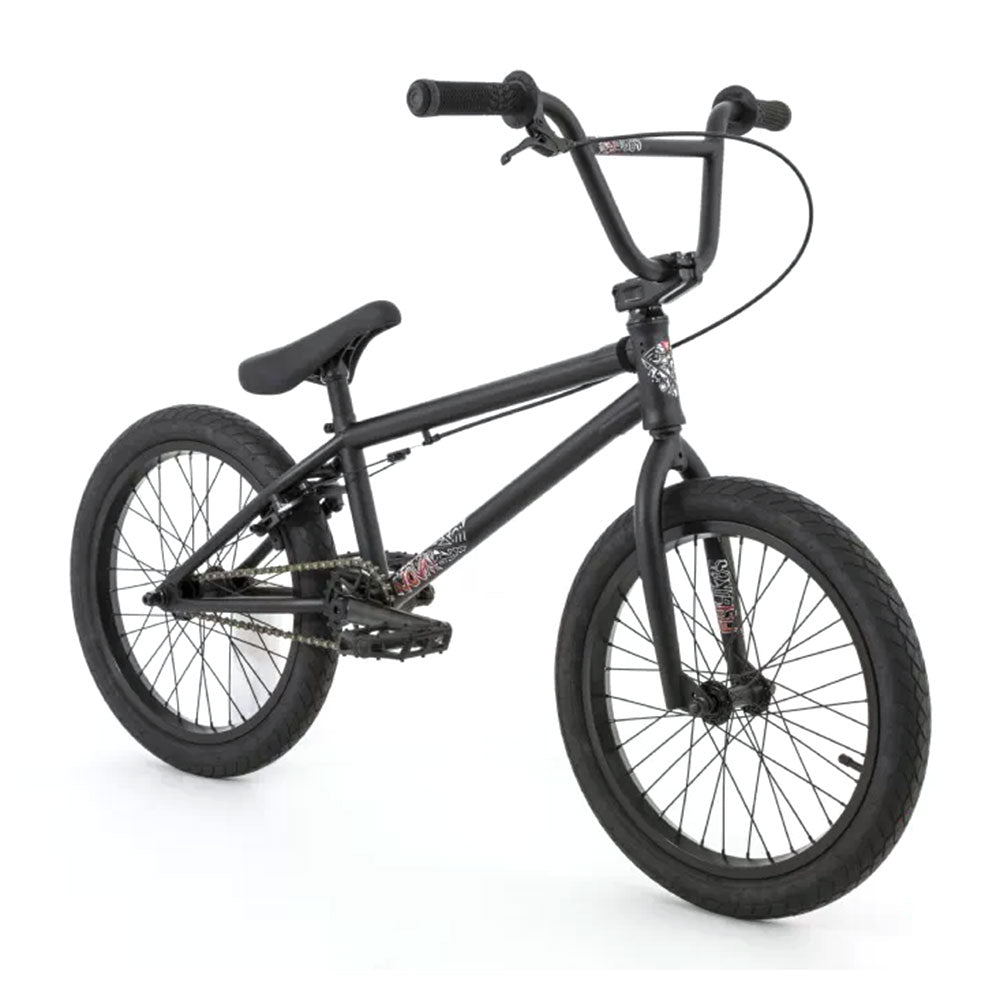

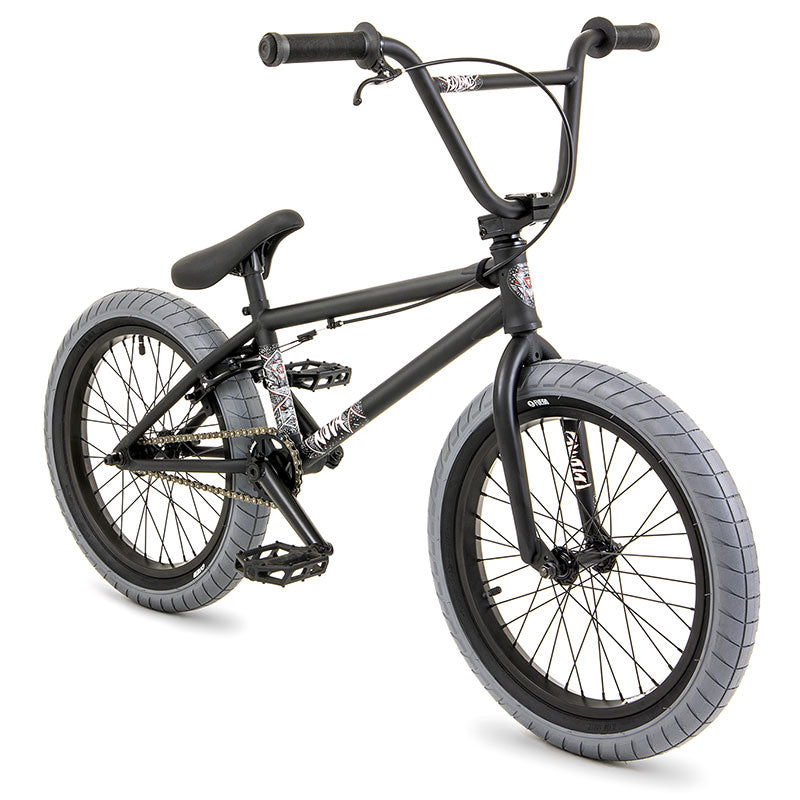

Flybikes Nova 18 Inch Complete

drive side:choose available drive side option in the menu above: RHD (right-hand drive) or LHD (left-hand drive)

frame: 1020 Hi-Ten Steel | 4130 Crmo down tube
top tube length: 17,5 inch
head tube angle: 75 degrees
seat tube angle: 71 degrees
chainstay length: 11,6 inch
bottom bracket height: 10,5 inch
standover height: 8 inch

forks: Chromoly steer tube | 1020 Hi-Ten Steel legs | 25mm offset
bars: 2 piece style | 1020 Hi-Ten | 7,5 inch rise | 10 degrees back sweep | 2 degrees up sweep | 25 inch wide
stem: Trebol Mini | top load | 6061 T-6 Alloy | 40mm reach
headset: Trebol Baja | integrated | sealed | 1 1/8 inch threadless
grips: Flybikes Ruben | 135mm long
bar ends: Flybikes

front hub: 3/8 inch axle | loose ball | male | alloy shell | 36H
rear hub: Trebol cassette | 14mm male axle | sealed bearings | 36H
front rim: Trebol | double side walled | 6061-T6 Aluminum | 36H
rear rim: Trebol | double side walled | 6061-T6 Aluminum | 36H
front tire: Flybikes Fuego | 18 x 2,2 inch | 60 TPI | 65 PSI
rear tire: Flybikes Fuego | 18 x 2,2 inch | 60 TPI | 65 PSI

cranks: 4130 CrMo | 3pc | 152mm arm length
bb: Spanish | sealed
sprocket: Trebol | steel | 25 teeth
chain: 510 type | 64 links
pedals: Flybikes Ruben graphite | Nylon - Fiberglass Compound
gearing: 25/9 teeth
seat: Nova | 100% Synthetic Leather | 7 mm Thickness | Combo | 1 piece

seat post: Combo
seat post clamp: integrated
brake: Trebol Springhanger | Forged | 6061 T-6 Aluminum

brake cable: Flybikes brake lever: Trebol mini | right side | Die Casting Alloy
pegs: none
