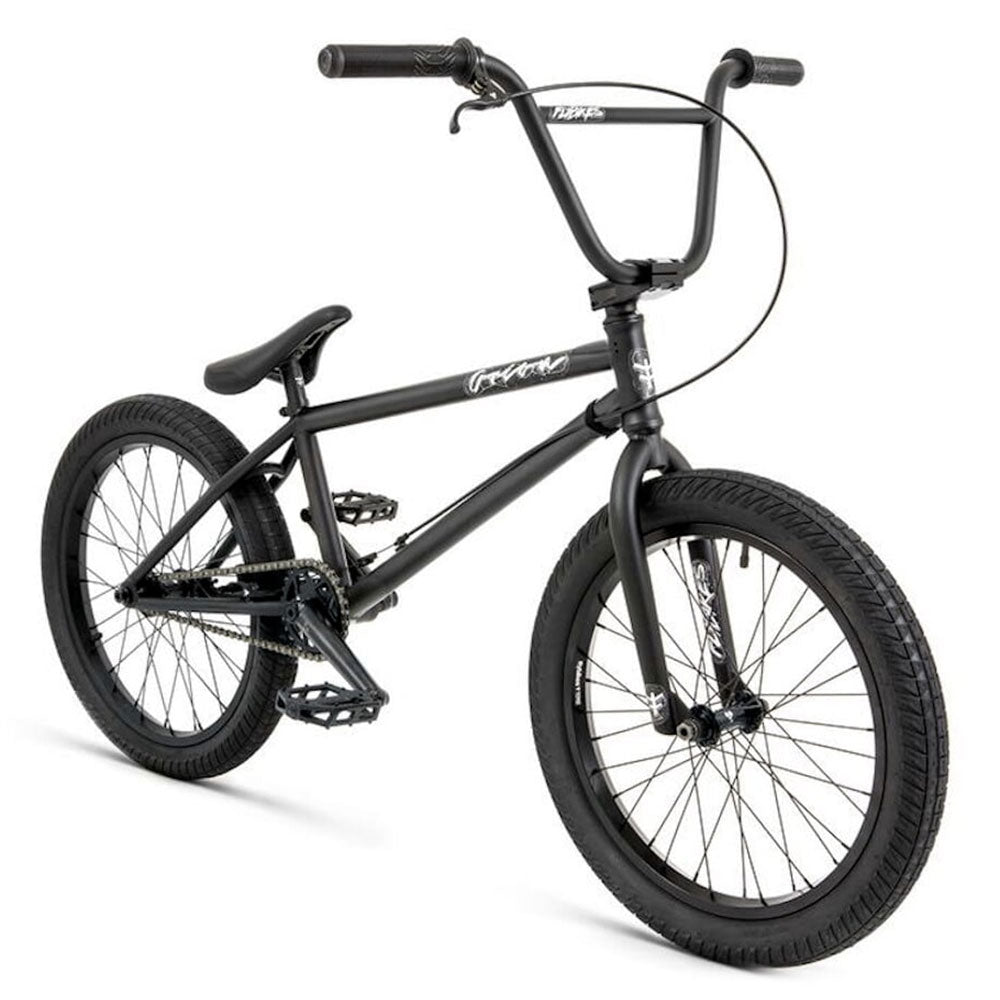

Flybikes Orion Complete

frame: Full 4130 CrMo | Removable Brake Mounts | Chain Tensioners
top tube length: 21 inch
head tube angle: 75 degrees
seat tube angle: 71 degrees
chain stay length: 13,7 inch
bottom bracket height: 11,75 inch
stand over height: 9,25 inch

forks: full 4130 Chromoly | 32 mm offset | 1 piece steer tube
bars: full 4130 Chromoly | 9 inch rise | 10 degrees back sweep | 2 degrees up sweep | 29 inch wide
stem: Flybikes Volcano | CNC Machined | 6061-T6 Aluminum | 50mm reach | 25mm rise
headset: Trebol | integrated | sealed | 1 1/8 inch threadless | CNC Machined / 6061-T6 Aluminum
grips: Flybikes Ruben 2 | 160mm
bar ends: Flybikes

front hub: Trebol Bueno | 3/8 inch axle bolts | sealed bearings | female | 36 holes
rear hub: Trebol Bueno cassette | sealed bearings | 14mm female axle | RHD (right-hand drive) | 36 holes
front rim: Flybikes Piramide | double side walled | 36 holes | 6061-T6 Aluminum
rear rim: Flybikes Piramide | double side walled | 36 holes | 6061-T6 Aluminum
front tire: Flybikes Ruben Ligera 20 x 2,4 inch | 60 TPI | 120 PSI
rear tire: Flybikes Ruben 20 x 2,25 inch | 60 TPI | 120 PSI

cranks: Trebol | 3pc | 4130 CrMo | 175 mm
bb: Mid | sealed
sprocket: Flybikes Tractor TT | full CNC 7075 Alloy | 29 teeth
chain: 512 type | 74 links
pedals: Flybikes Ruben graphite | Nylon - Fiberglass Compound
gearing: 29/9 teeth

seat: Flybikes Sierra 3 | Tripod | 100% Synthetic Leather | 7 mm Thickness
seat post: Flybikes | Tripod | CNC Machined | 6061-T6 Aluminum | 135 mm Long
seat post clamp: integrated

brake: Trebol Springhanger | Forged | 6061 T-6 Aluminum
brake cable: Flybikes
brake lever: Trebol | Right Side | Forged |6061 T-6 Aluminum

pegs: no
