KINK

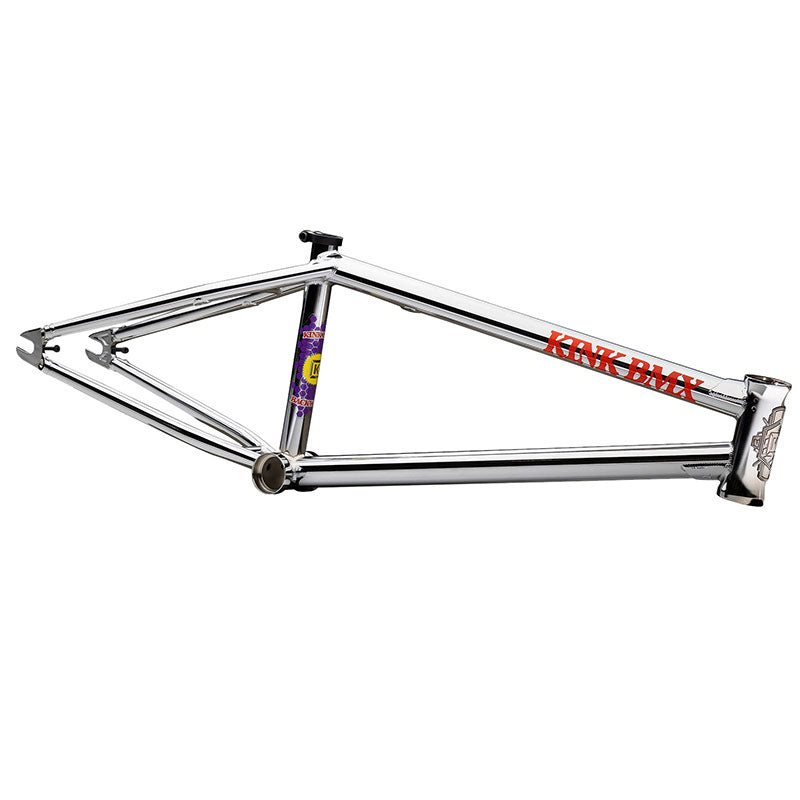

Kink Backwoods Frame
Kink Backwoods Frame
Regular price
€369,95 EUR
Regular price
Sale price
€369,95 EUR
Unit price
per
Tax included.
Shipping calculated at checkout.
Low stock
Couldn't load pickup availability
SKU
SKU:20002434
| Weight per variant | |
|---|---|
| CHROME / 20.75''TT / BRAKEMOUNT: | 2.24 kg |
| CHROME / 21.25''TT / BRAKEMOUNT: | 2.24 kg |
| CHROME / 21.5''TT / BRAKEMOUNT: | 2.24 kg |
| BLACK / 20.75''TT / BRAKEMOUNT: | 2.24 kg |
material: 100% Seamless Sanko 4130 Chromoly Tubing
top tube length: choose available TT length in the size menu above
head tube angle: 74,5 degrees
head tube length: 117mm
seat tube angle: 71 degrees
chainstay length: 13,5 (slammed)
bottom bracket height: 11,6 inch
standover height: 9 inch
head tube: compatible with integrated headsets (45/45)
bottom bracket: mid | machined
seat tube: fits 1 inch (25,4mm) seat posts
dropouts: 14mm slots | removable integrated chain tensioners | Investment Cast
down tube gusset: yes
top tube gusset: yes
tire clearance: big tires
brake mounts: removable on seatstay (included)
gyro tab holes: yes
additional information:
K-Brick Headtube Badge
Simple Straight Seatstay and Chainstay Bridges
Includes Kink Master Clamp Seat Clamp
top tube length: choose available TT length in the size menu above
head tube angle: 74,5 degrees
head tube length: 117mm
seat tube angle: 71 degrees
chainstay length: 13,5 (slammed)
bottom bracket height: 11,6 inch
standover height: 9 inch
head tube: compatible with integrated headsets (45/45)
bottom bracket: mid | machined
seat tube: fits 1 inch (25,4mm) seat posts
dropouts: 14mm slots | removable integrated chain tensioners | Investment Cast
down tube gusset: yes
top tube gusset: yes
tire clearance: big tires
brake mounts: removable on seatstay (included)
gyro tab holes: yes
additional information:
K-Brick Headtube Badge
Simple Straight Seatstay and Chainstay Bridges
Includes Kink Master Clamp Seat Clamp
