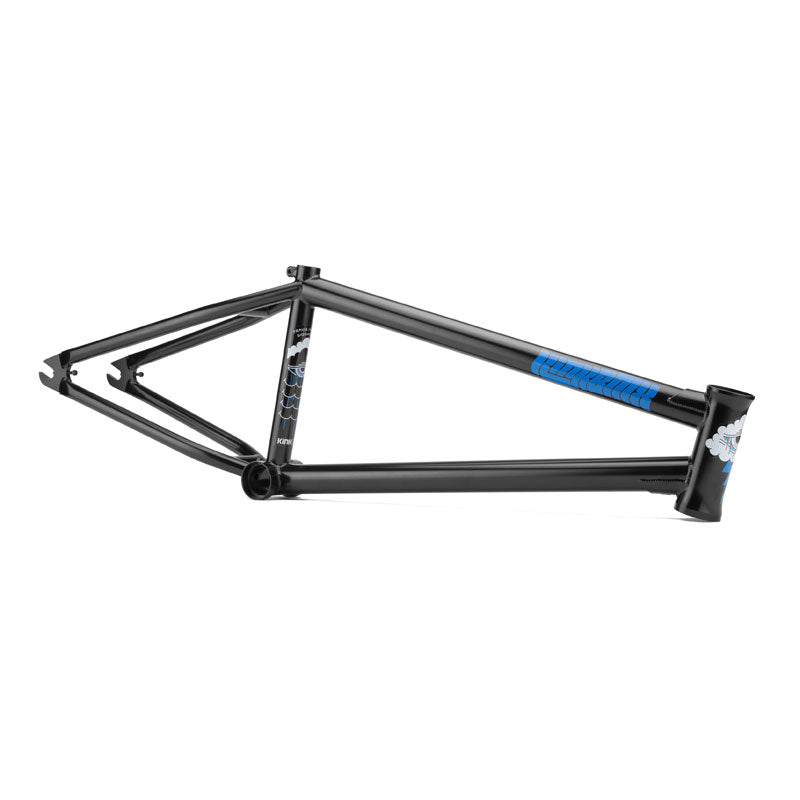

Kink Cloud Frame

Travis Hughes signature

material: 100% 4130 Chromoly Tubing
top tube length: choose available TT length in the size menu above
head tube angle: 75,5 degrees
head tube length: 120mm
seat tube angle: 71 degrees
chainstay length: 13,5 inch slammed
bottom bracket height: 11,65 inch
standover height: 8,75 inch

head tube: compatible with integrated headsets (45/45)
bottom bracket: mid | internally and externally cnc machined
seat tube: fits 1 inch (25,4mm) seat posts
dropouts: 14mm slots
down tube gusset: yes
top tube gusset: yes

tire clearance: for big tires
brake mounts: no
gyro tab holes: no

additional information:
A no-frills, straight to the point, super-strong frame that is meant to be ridden
just clean lines, 100% chromoly tubing and clean laser-cut dropouts
integrated chain tensioners and seat post clamp
