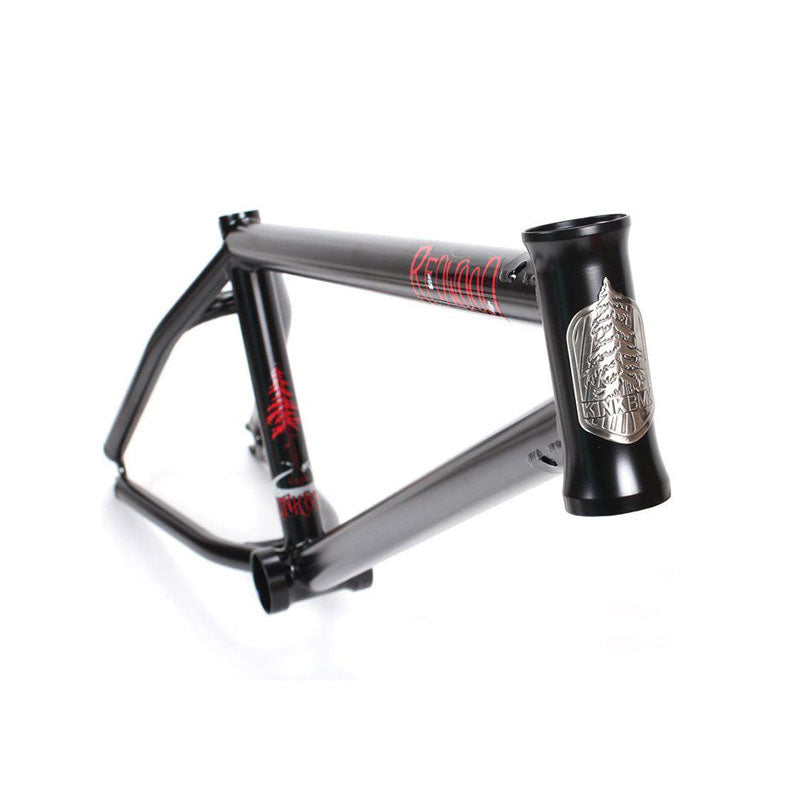

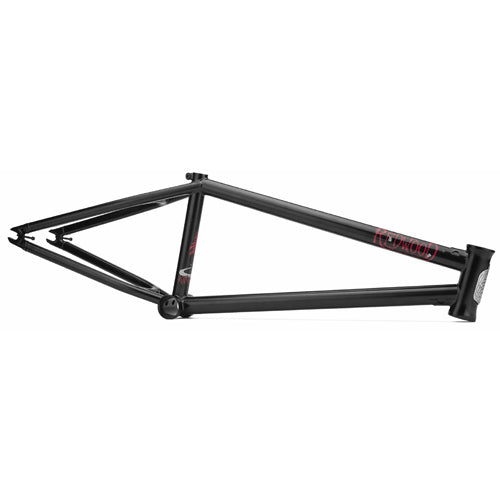

Kink Redwood Frame

Connor Lodes signature

material: full 4130 Chromoly tubing
top tube length: 20,75 inch
head tube angle: 75,5 degrees
head tube length: 117mm
seat tube angle: 71 degrees
chainstay length: 13,25 inch (slammed)
bottom bracket height: 11,75 inch
standover height: 9 inch

headtube: compatible with integrated headsets (45/45)

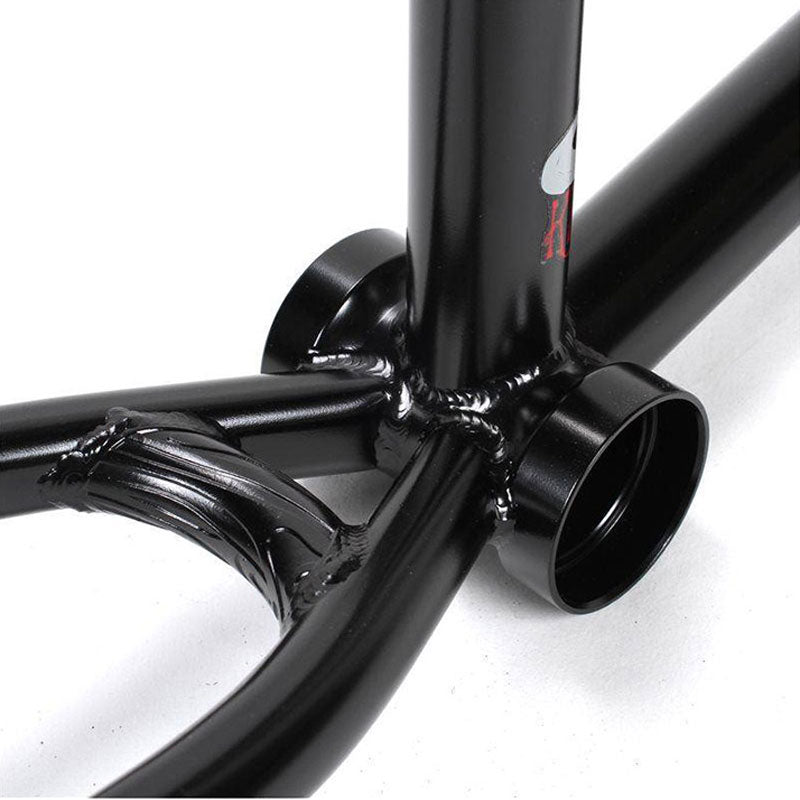

bottom bracket: mid | internally and externally machined
seat tube: fits 1 inch seatposts | Integrated seat post clamp
dropouts: 14mm slots | investment cast | integrated chain tensioners
down tube gusset: yes
top tube gusset: yes

tire clearance: fits large tires
brake mounts: no (BRAKELESS)
gyro tab holes: no

additional information:
wide chainstays for big tire clearance
D-Shape Chainstays and Seatstays
Custom Cast Faux Tree Bark Stay Bridges
Custom Headtube Badge with 3M Adhesive Backing
