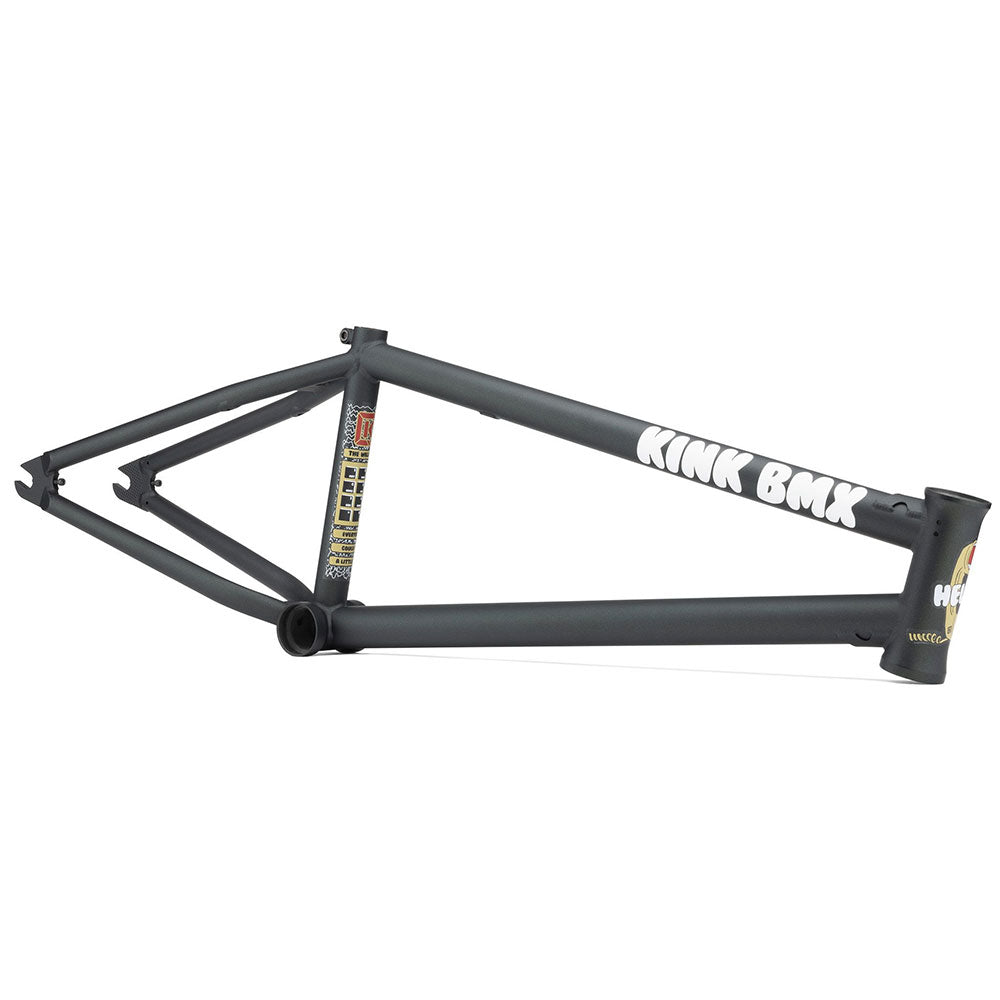

Kink Williams Frame

material: 100% Seamless Sanko 4130 Chromoly Tubing
top tube length: choose available TT length in the size menu above
head tube angle: 75,5 degrees
head tube length: 127mm
seat tube angle: 71 degrees
chainstay length: 12.75 (slammed)
bottom bracket height: 11,7 inch
standover height: 9 inch

head tube: compatible with integrated headsets (45/45)
bottom bracket: mid | machined
seat tube: fits 1 inch (25,4mm) seat posts
dropouts: 14mm slots | removable integrated chain tensioners | Investment Cast
down tube gusset: yes
top tube gusset: yes

tire clearance: for big tires
brake mounts: removable on seatstay (included)
gyro tab holes: yes

additional information:
Oval chainstays for tire clearance up to 2.5”
CNC’d seatstay bridge with Kink badge inlay
Investment cast dropouts with anti-slip interior dropout knurling
