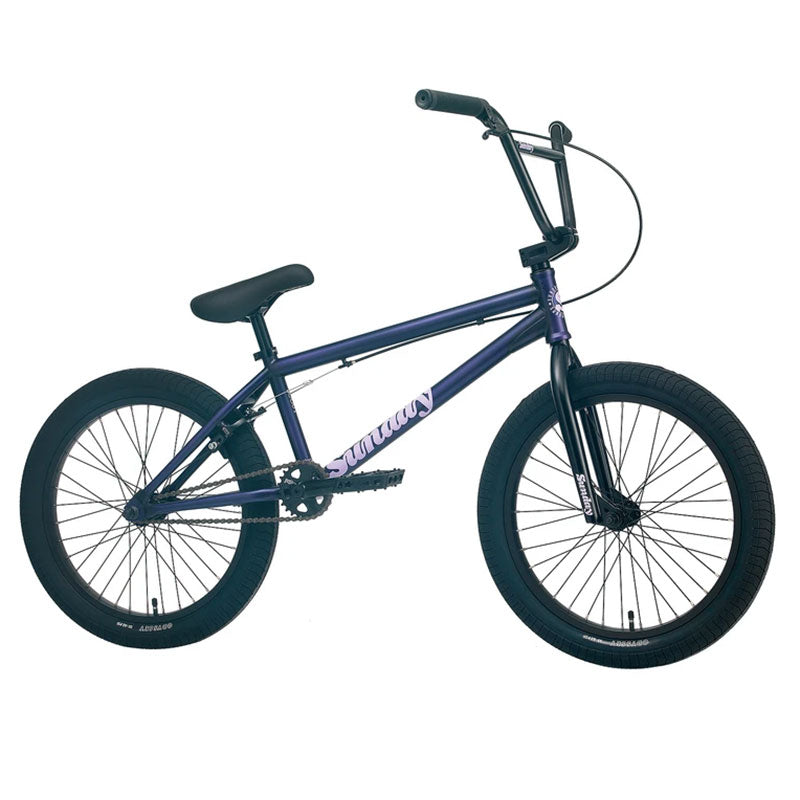

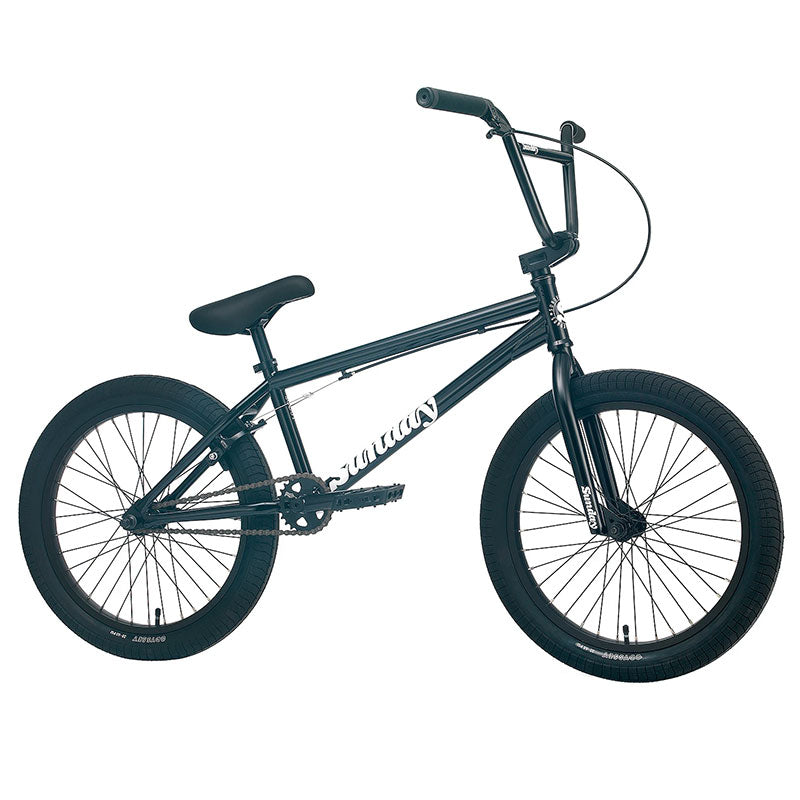

Sunday Scout Complete

frame: hi-tensile steel | chromoly downtube and dropouts
top tube length: 20,75 inch
head tube angle: 75,5 degrees
seat tube angle: 71 degrees
chain stay length: 13,2 - 13,5 inch
bottom bracket height: 11,5 inch
stand over height: 9 inch

forks: Sunday Scout | hi-tensile steel | 2pc | chromoly steerer
bars: Sunday | hi-tensile steel | 9 inch rise | 28,5 inch wide | 12 degrees backsweep | 4 degrees upsweep | 2pc
stem: Sunday Freeze | 48 mm reach | topload
headset: FSA integrated | w/alloy 10 mm spacer
grips: Odyssey Broc Raiford signature
bar ends: Odyssey

front hub: sealed | 3/8 (10mm) inch axle | 36H
rear hub: sealed | cassette | 9t driver | 36H
front rim: P-7X | 20 inch diameter | 36H
rear rim: P-7X | 20 inch diameter | 36H
front tire: Odyssey Path Pro OEM | 20 inch diameter | 2,4 inch width
rear tire: Odyssey Path Pro OEM | 20 inch diameter | 2,4 inch width

cranks: tubular | 3-piece | chromoly | 170 mm length
bb: 19mm | sealed | mid
sprocket: Sunday Sabertooth V2 | steel | 25T
chain: KMC Z1 wide
pedals: Odyssey Twisted Pro | plastic
gearing: 25 x 9

seat: Sunday Badge | pivotal
seat post: Pivotal
seat post clamp: Sunday

brake: Odyssey Springfield U-Brake
brake cable: Odyssey Quik Slic
brake lever: Odyssey Springfield

pegs: not included
