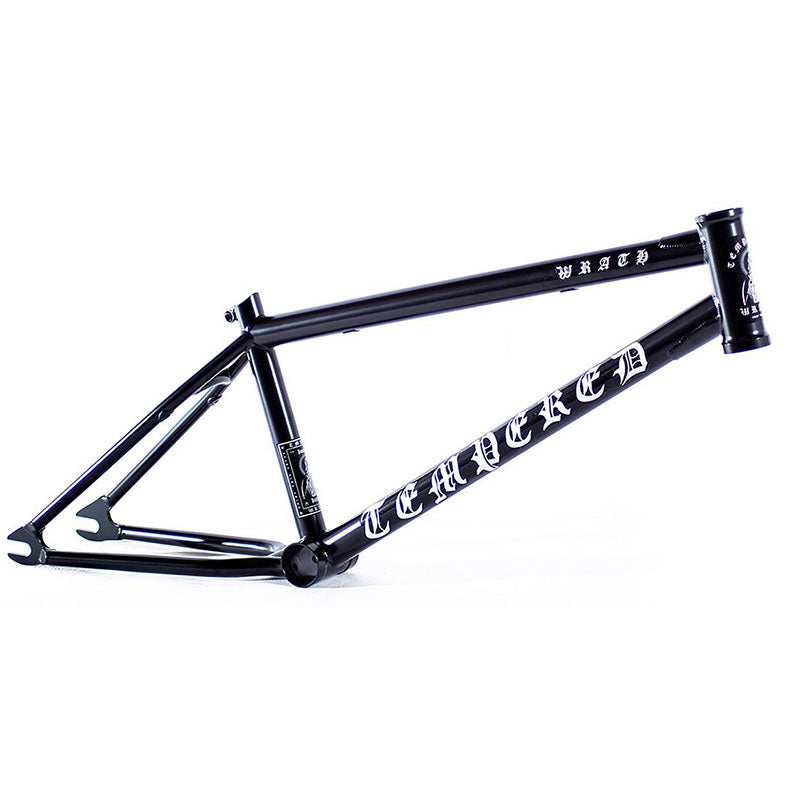

Tempered Wrath Frame

material: 4130 CROMO
toptube length: choose available TT length in the size menu above
head tube angle: 75 degrees
head tube length: 5 inch
seat tube angle: 71 degrees
chainstay length: 13 inch slammed - 13,3 inch
bottom bracket height: 11,5 inch
standover height: 9,15 inch

headtube: compatible with integrated headsets (45/45)
bottom bracket: mid | externally machined
seattube: fits 1 inch (25,4mm) seat posts
dropouts: 14mm slots | 6mm thick
downtube gusset: yes
toptube gusset: no

tire clearance: for big tires
brake mounts: bolt-in M8 (included)
gyro tab holes: no

additional information:
responsive geo
room for a 2.4” tyre and a 28T sprocket
integrated chain tensioners
