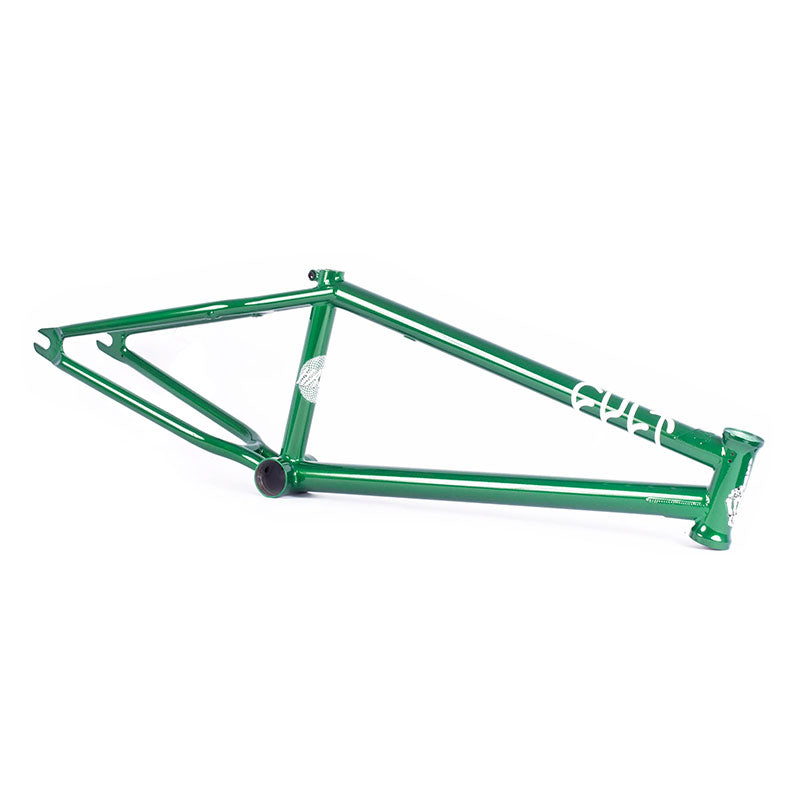

Cult Hawk Frame

Chase Hawk Signature

material : 100% cult classic tubing
top tube length : choose available TT size (in inch) in the size menu above
head tube angle : 74,5 degrees
head tube length : 117,48mm
seat tube angle : 71 degrees
chain stay length : 13,5-13,8 inch
bottom bracket height : 11,8 inch
stand over height : 8,75 inch

head tube : compatible with integrated headsets (45/45 degrees)
bottom bracket : mid
seat tube : fits 1 inch seatposts | integrated seat clamp
dropouts : 14mm slots | 5mm thick | heat-treated
down tube gusset : yes
top tube gusset : yes

tire clearance : fits large tires
brake mounts : removable on seatstay (not included) | Bolt-in (M6)
gyro tab holes : yes

additional information :
“vintage style” tapered seatstays with removable brake mounts (not included)
s-bend chainstays with room for 2.40” tires
investment cast heat-treated dropouts
